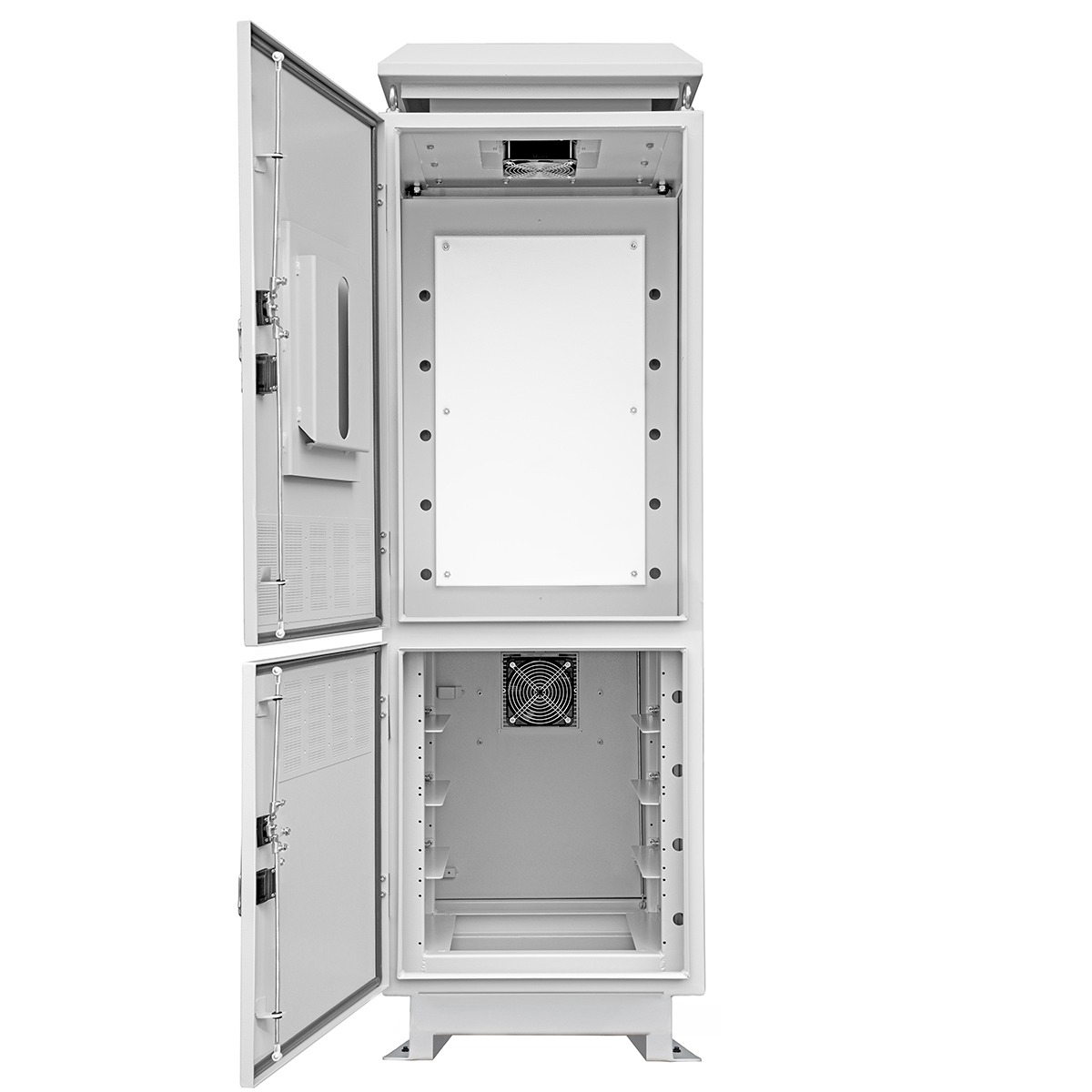

- 19” Rack mounts with slide-in shelves for battery module mounting for 4 modules
- Universal racking system for multiple battery brands such as BYD Flex 5.0, ZYC Simpo 5000
- Indoor or outdoor installation thanks to IP55 protection rating and new additional rain hood
- Fully welded construction, 3 mm (0.12 in) Aluminum
- Stainless steel bolts and fittings installed throughout
- Powder coated light grey finish (RAL7035)
- Mounting pan powder coated white

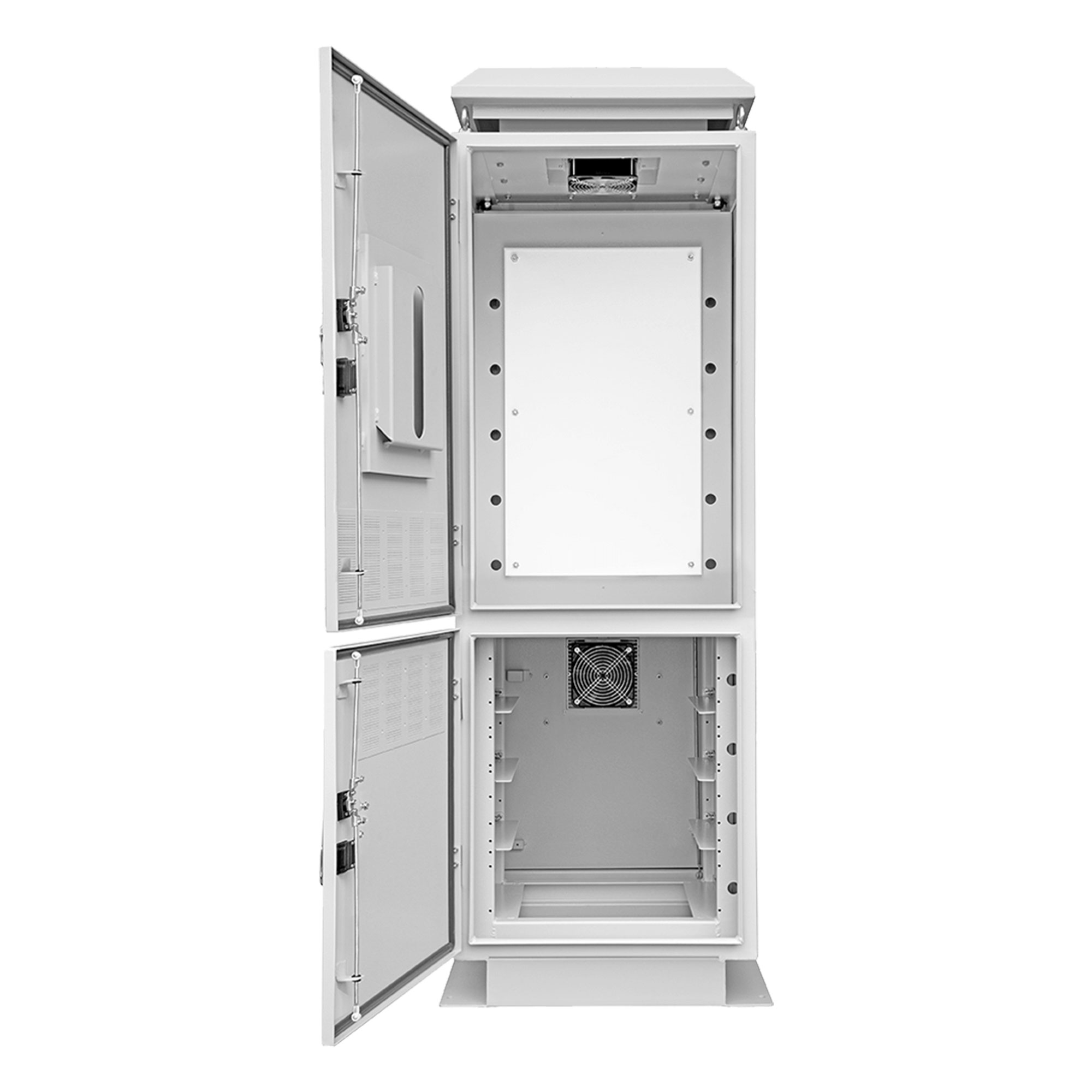

- Double front doors with segregation between battery section and equipment section as per AS/NZS5139:2019
- Robust 3-point door locking system • Gland plates fitted internally
- Rain protected vents on either side and on top to facilitate passive and forced ventilation. Covers are removable.
- Mounting plate can be used for inverters, chargers and all other equipment
- Stainless steel lifting eyes on all four corners on top

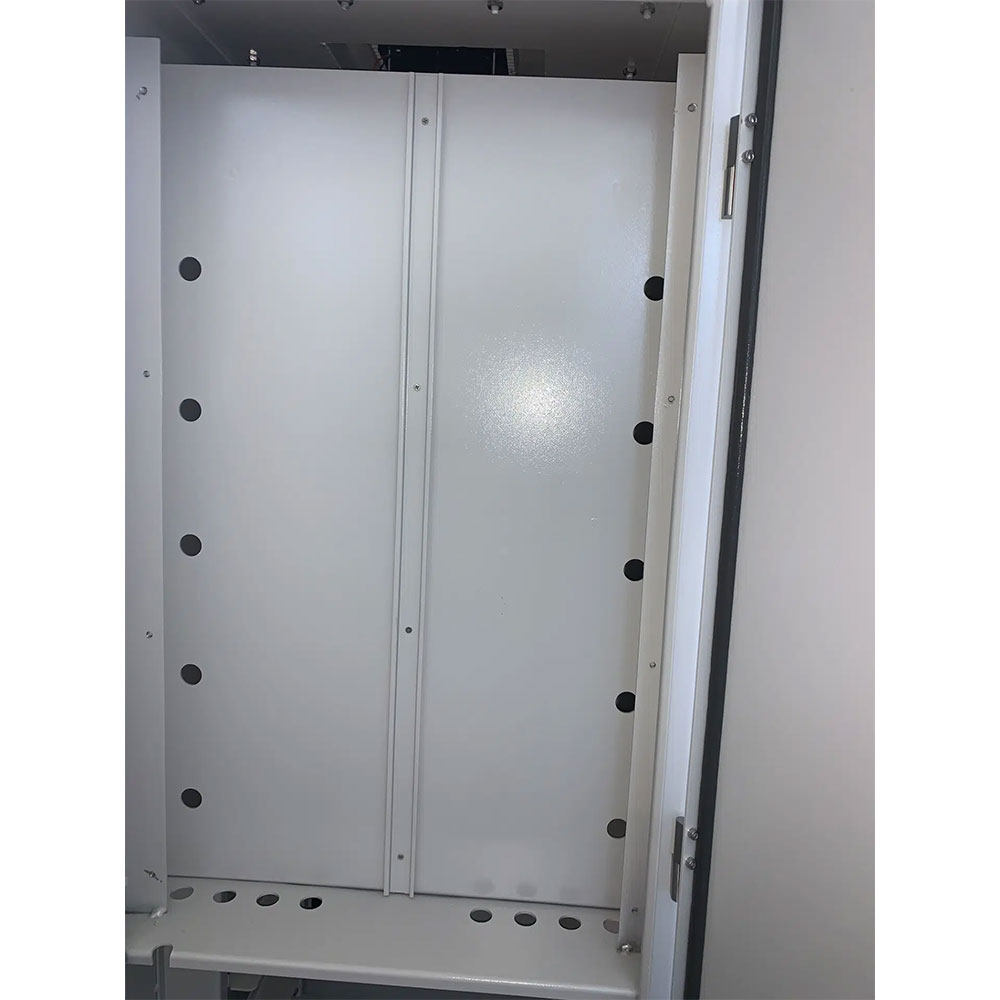

- Internal circuit breaker section for individual battery module isolation, with circuit breaker cut-outs in the escutcheon
- Document pocket on inside of door
- Dust filters installed on outlet vents
- 48VDC Ventilation fans installed as standard
- Punched aluminum screens over all openings to prevent unwanted entry by insects
- DOWNLOAD DATASHEET

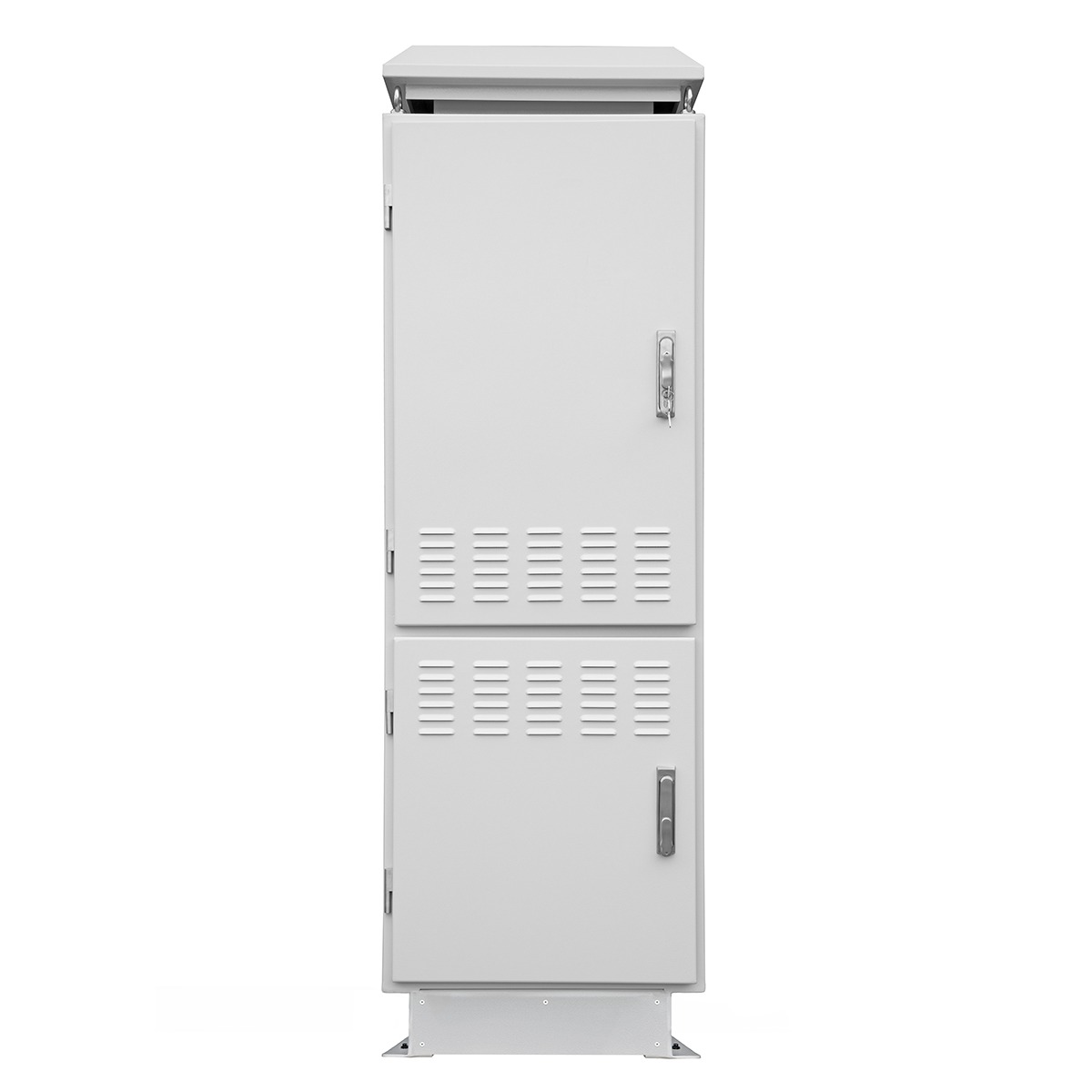

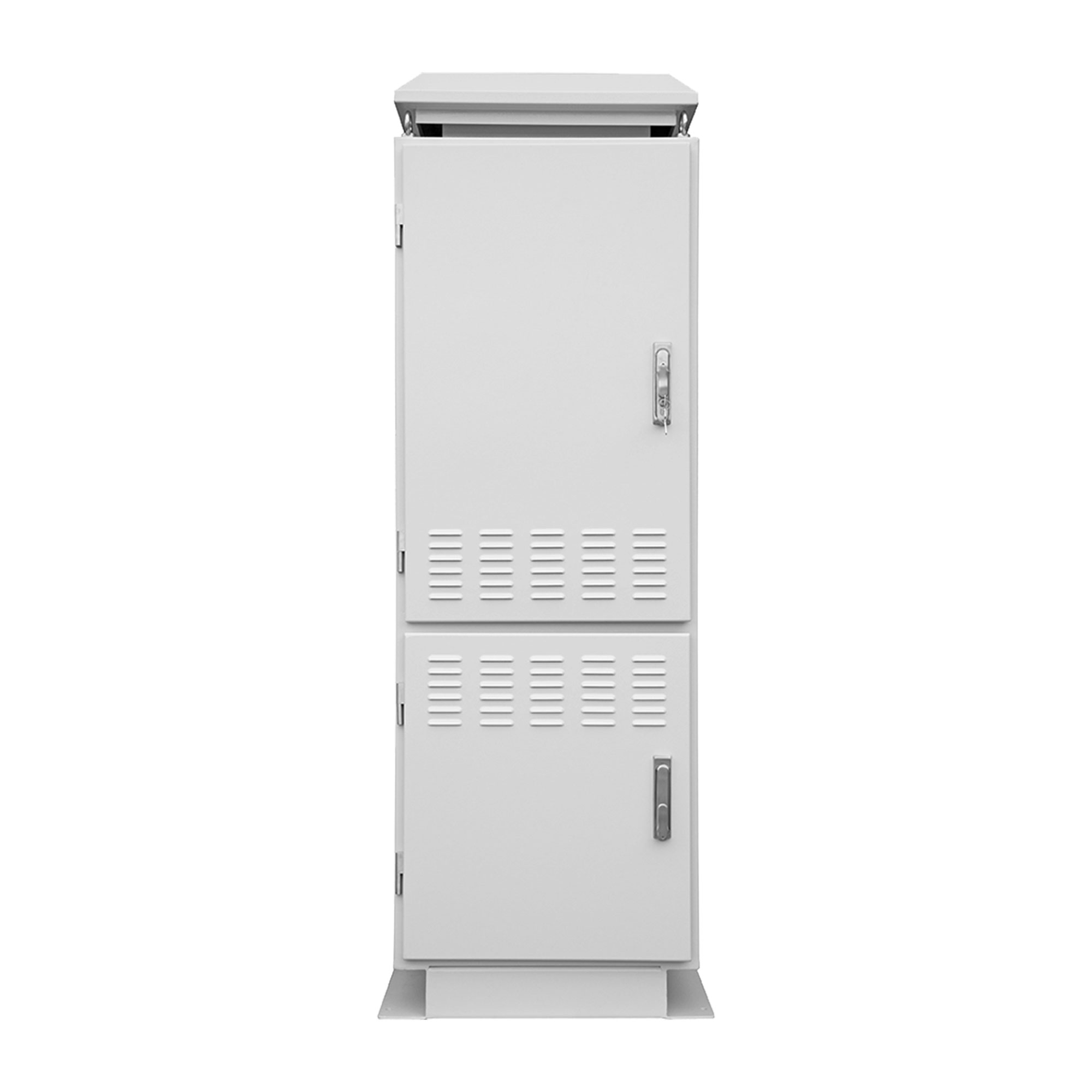

AL4TT
Solar Battery and Equipment Cabinet
Australian Registrar Of Designs Certification: No. 202014068
Equipment cabinets made specifically for the solar industry, to make installations easier, faster and safer.
Install your Choice of Batteries, Inverters and MPPT’s.
Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation.
The cabinets are sized to enable mounting of all inverters and charge controllers in the same panel. This makes the installation much safer, whilst keeping all equipment out of sight and protected from the elements. The cabinets are made of aluminum, making them easy to position and providing a long service life.
A slide-in racking system allows for easy installation of 19” rack-mount style battery modules along with rain protected vents on both sides and on top for passive ventilation.
Features
Optional Extras
- 50 mm (1.97 in) x 8 mm (0.31 in) x 600 mm (23.62 in) long tinned copper bus bar complete with pre-drilled holes for battery cable connections
- Bus bar insulators and stainless steel bolts
- Small mounting pan for the 2 x bus bars
Specifications
| Model | AL4 TT |
|---|---|
| Battery modules | 4 |
| External height without cover | 1,860 mm (73.23 in) |
| External height with cover | 1,862 mm (73.31 in) |
| External cabinet width | 600 mm (23.62 in) |
| External width a base of flange | 660 mm (25.98 in) |
| External depth | 600 mm (23.62 in) |
| Internal usable depth | 430 mm (16.93 in) |
| Mounting Plate height | 750 mm (29.53 in) |
| Mounting Plate width | 450 mm (17.72 in) |
| Mounting Plinth width | 660 mm (25.98 in) |
| Mounting Plinth depth | 600 mm (23.62 in) |
| Weight | 80 kg (176.4 lb) |
| Material | Aluminum |
| Finish | Powder Coating |
