- Universal mounting system for multiple battery brands such as BYD Flex 5.0, ZYC Simpo 5000
- Indoor or outdoor installation thanks to IP55 rating
- Fully welded construction, 3 mm (0.12 in) Aluminum
- Stainless steel bolts and fittings installed throughout
- Powder coated light grey finish (RAL7035)
- Mounting pan powder coated white

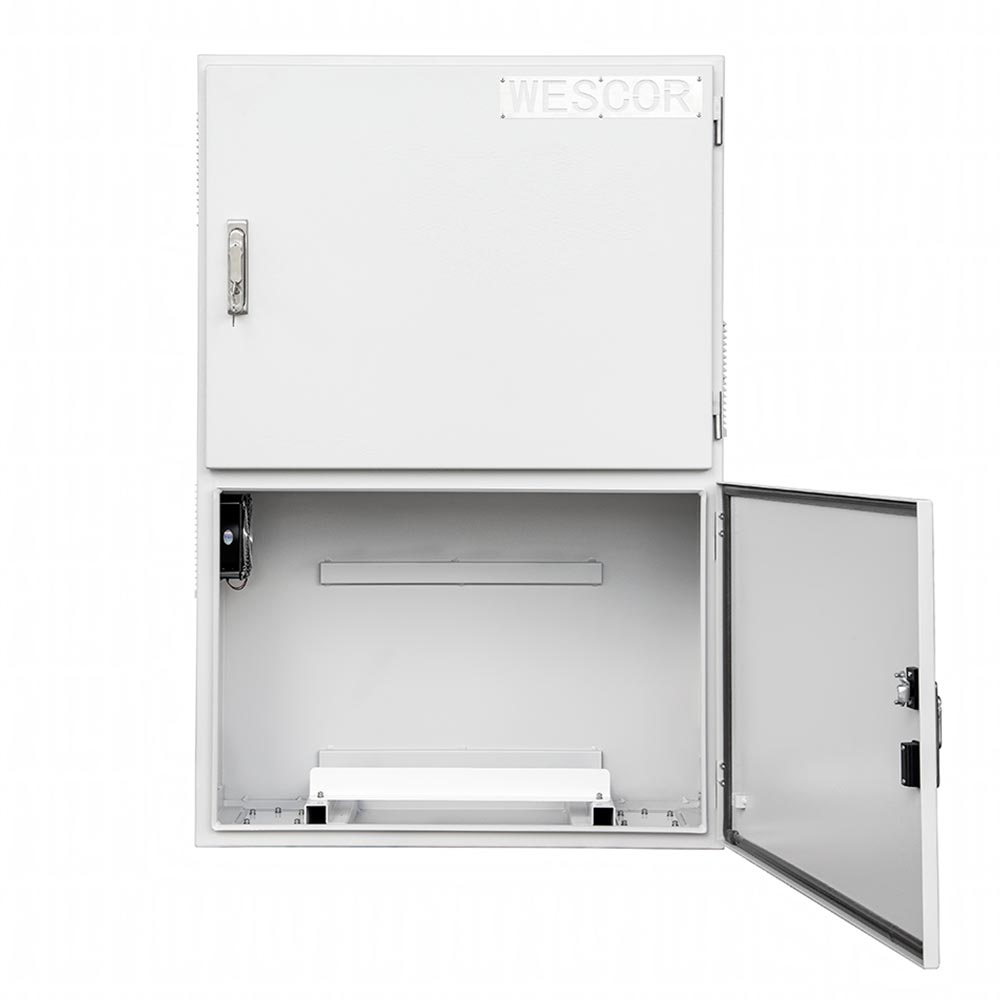

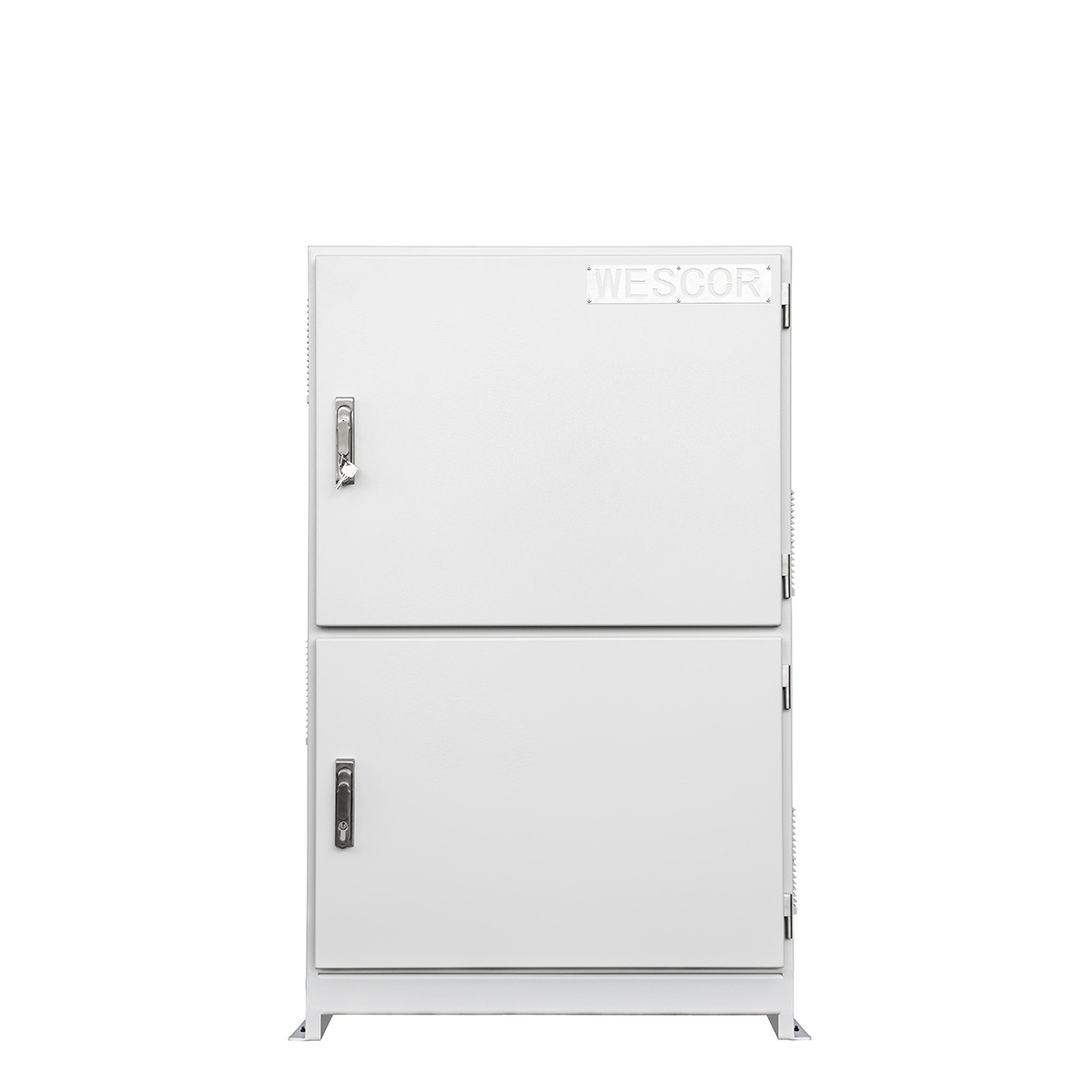

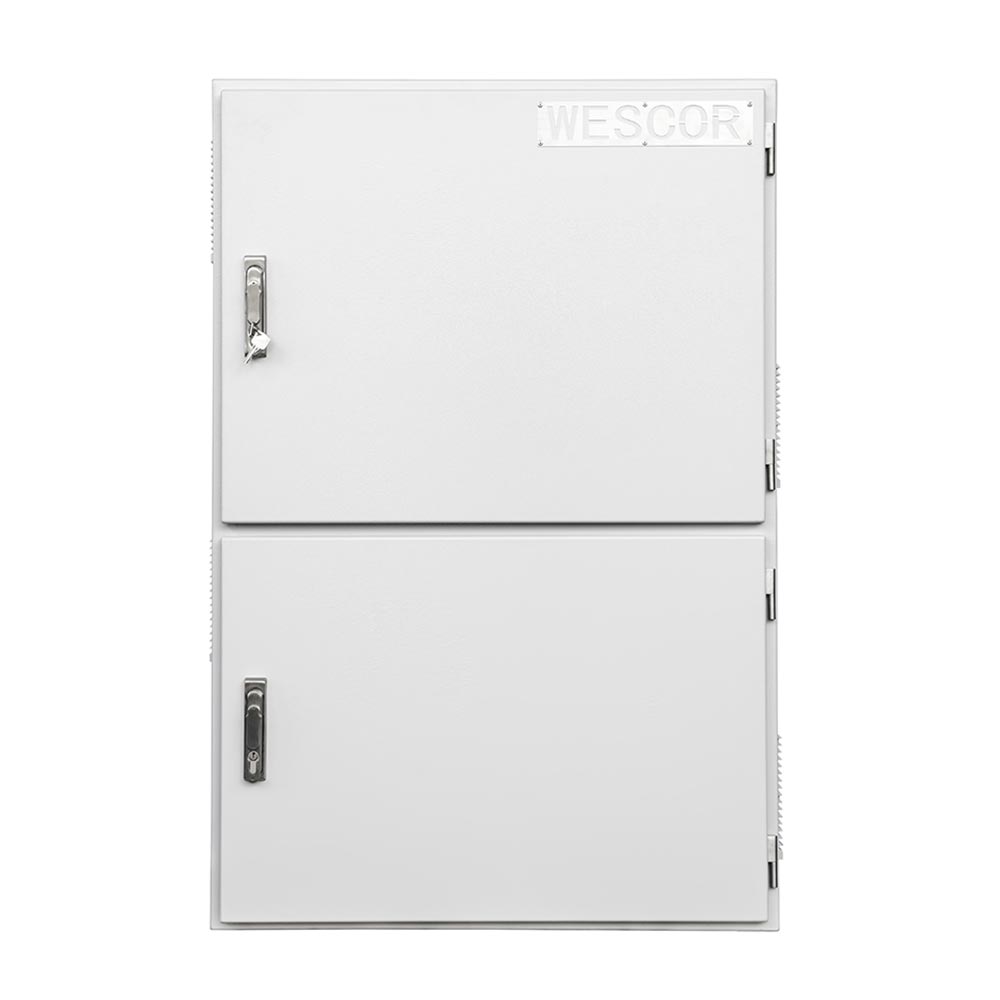

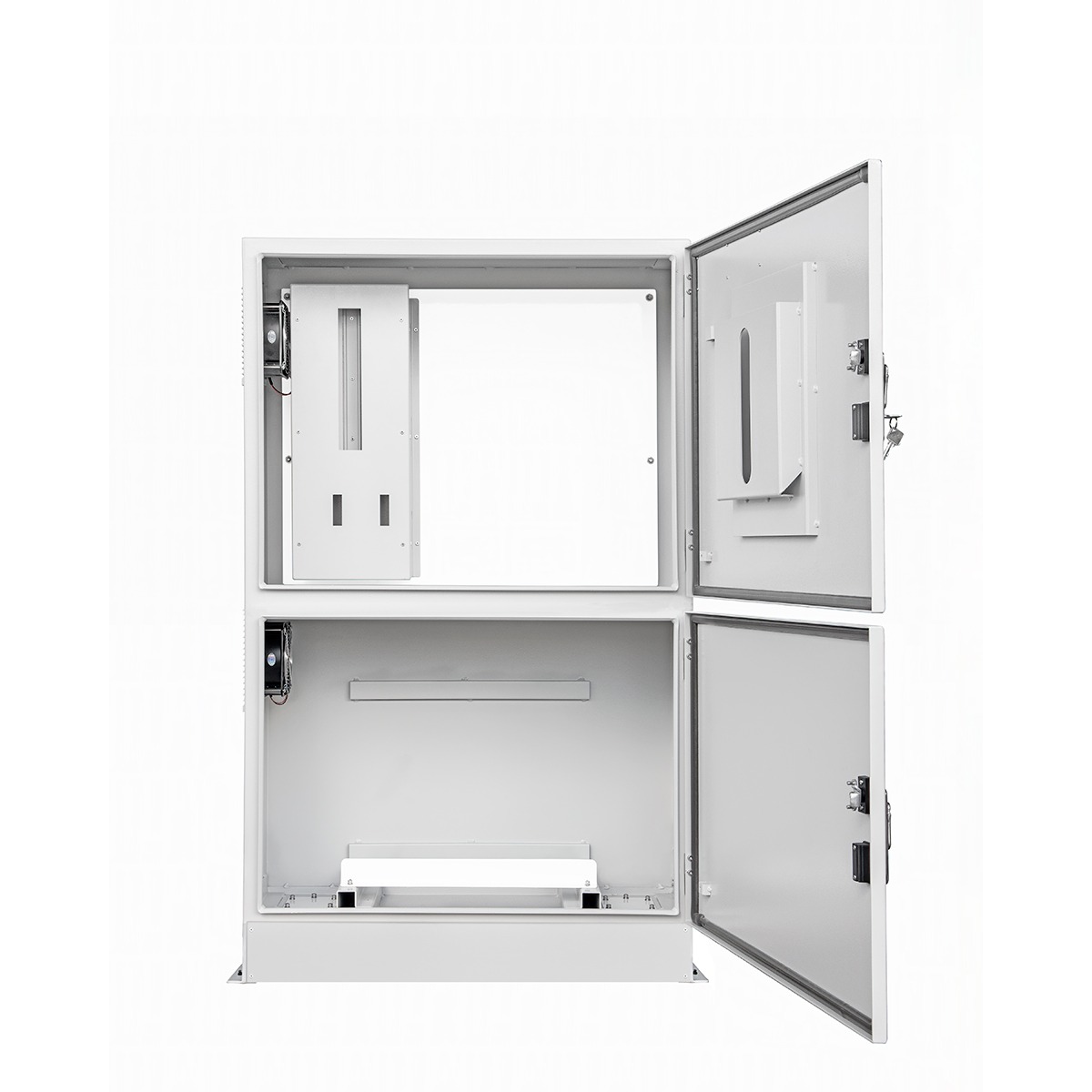

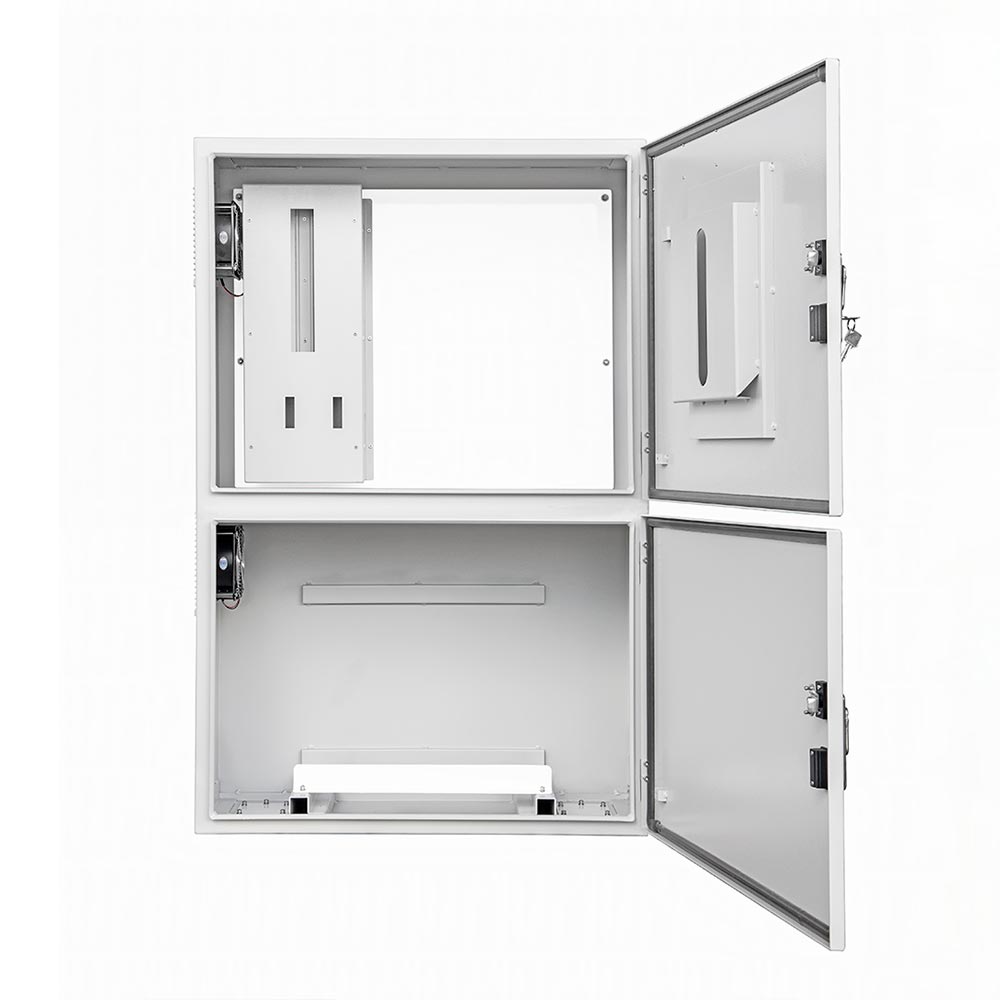

- Double front doors with segregation between battery section and equipment section
- Robust door locking system
- Gland plate fitted internally

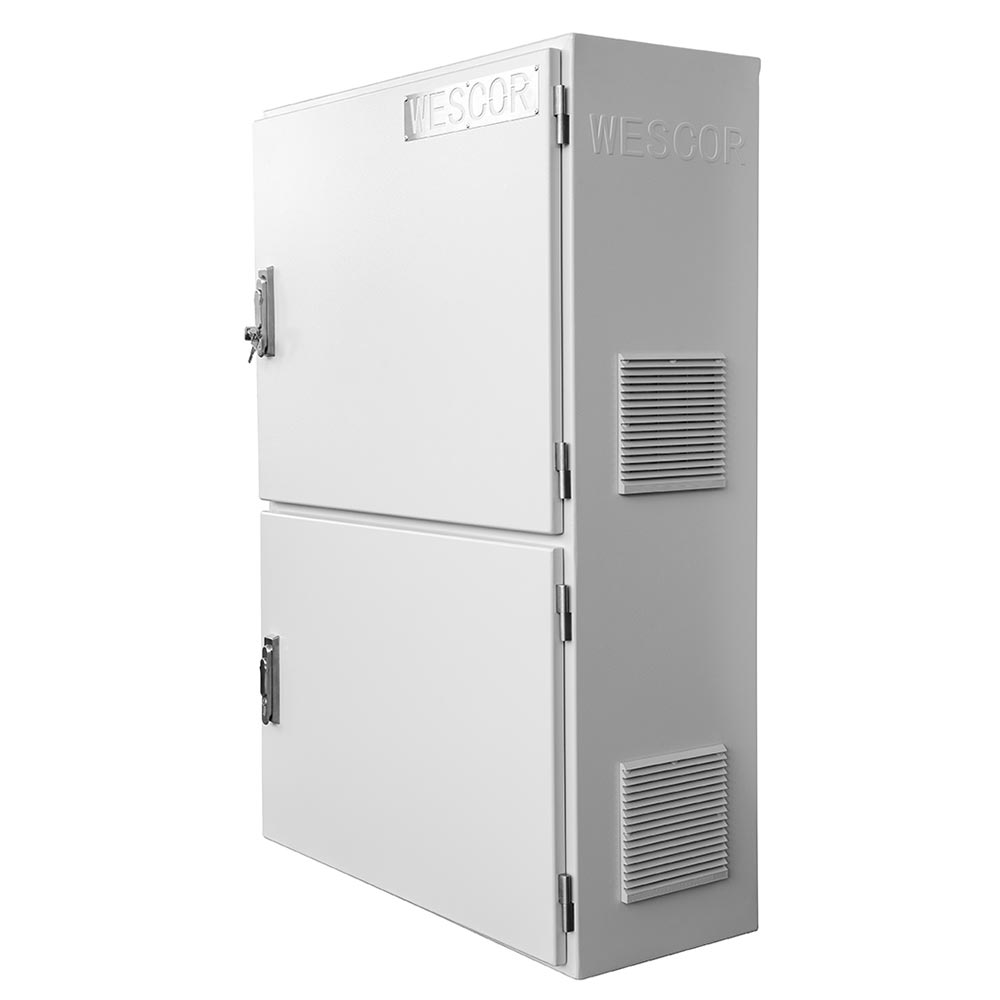

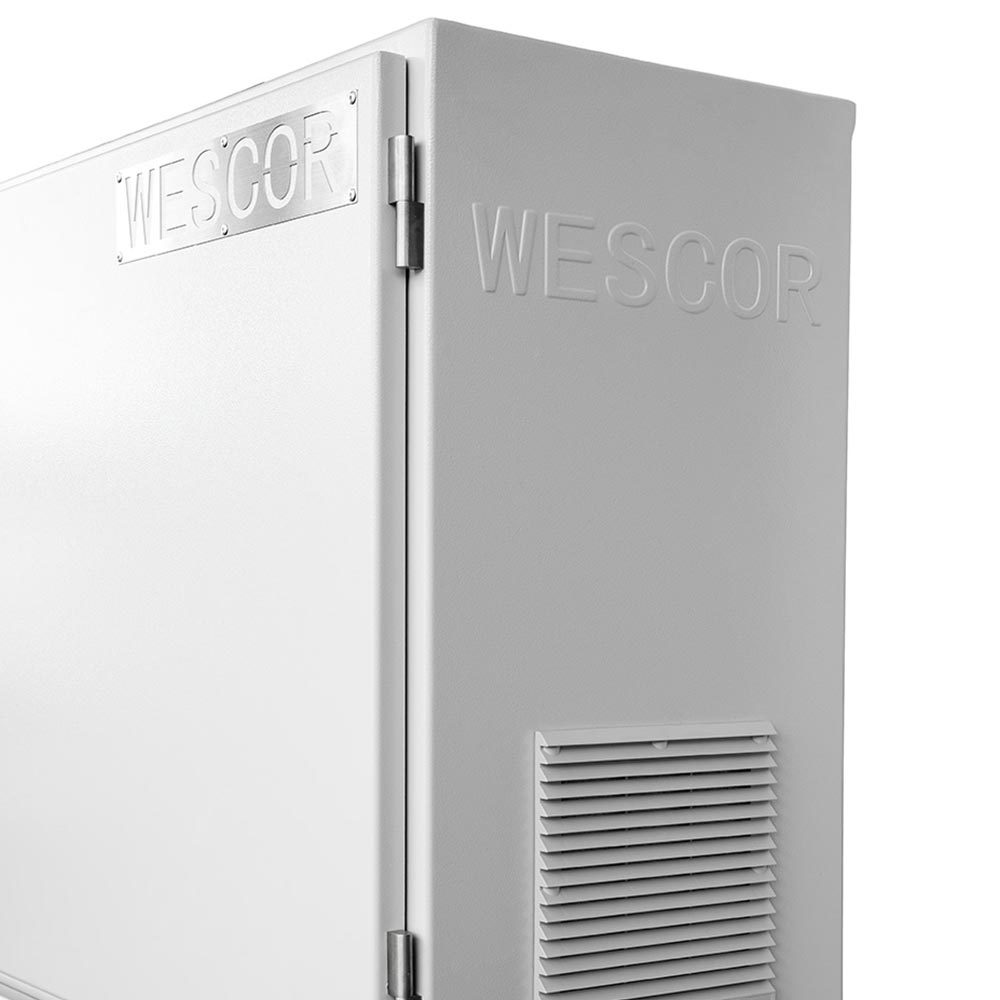

- Rain protected vents on either side and on top to facilitate passive and forced ventilation. Covers are removable.

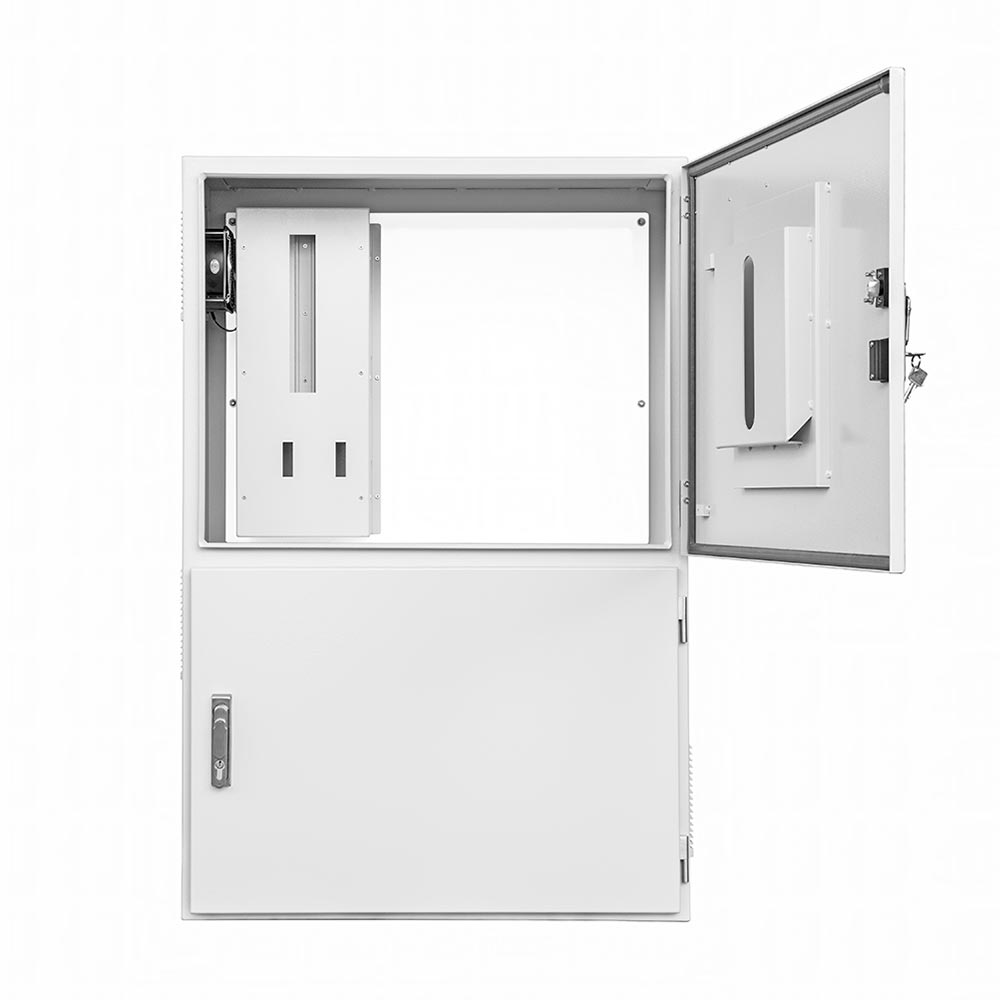

- Mounting plate can be used for inverters, chargers and all other equipment
- Removable internal circuit breaker section
- Document pocket on inside of door
- Dust filters installed on outlet vents

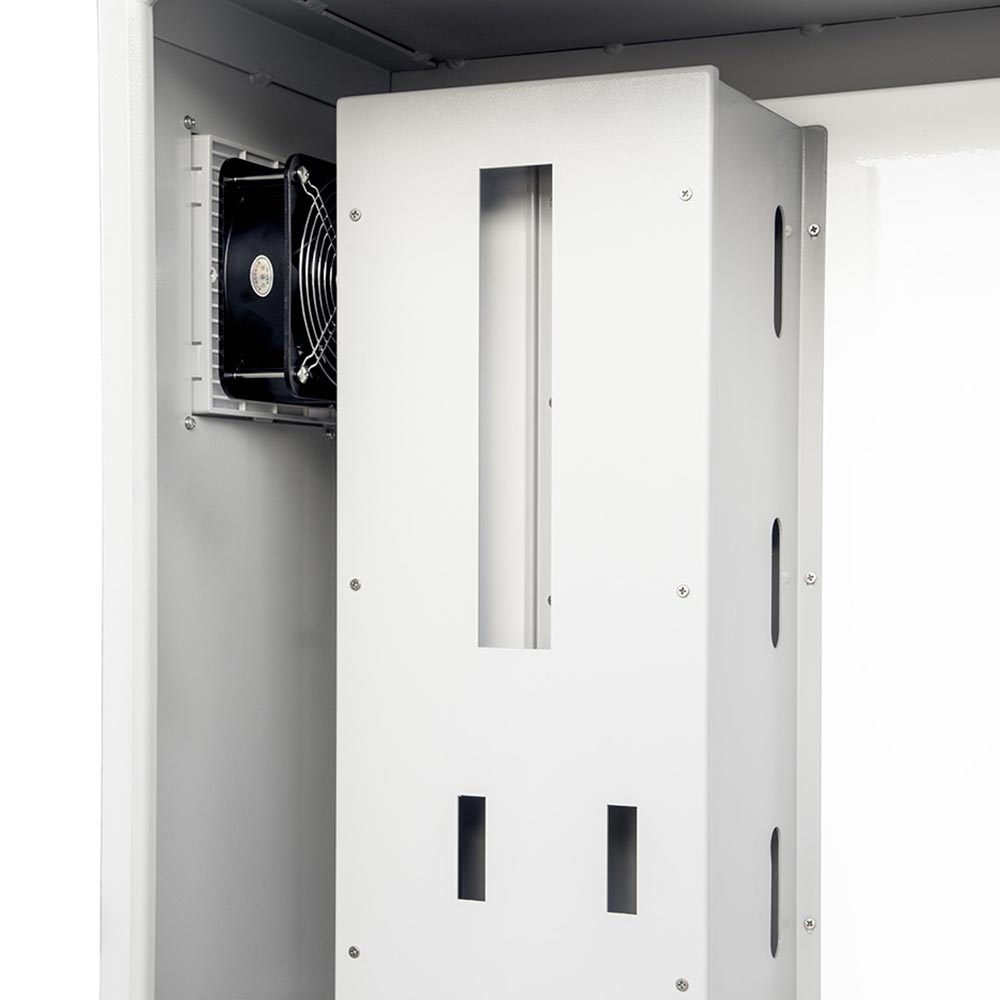

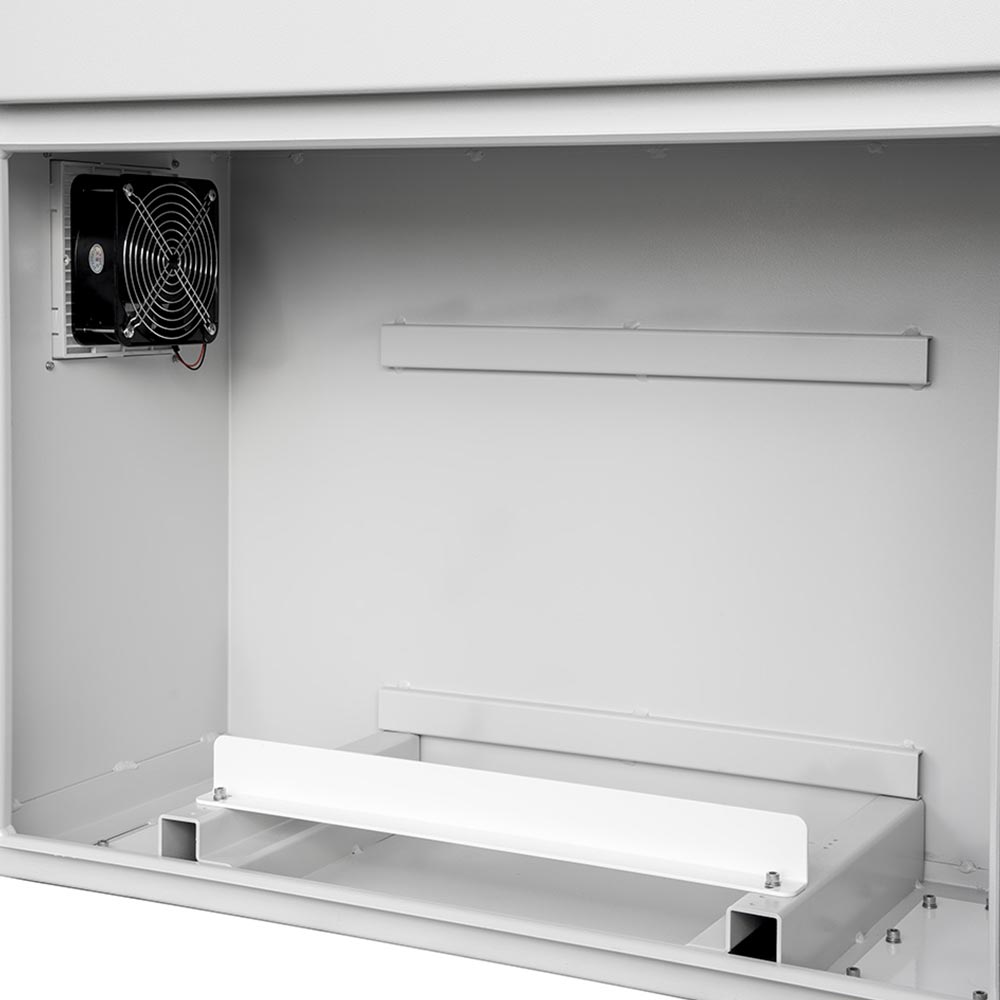

- 48VDC Ventilation fans installed as standard
AL2
Solar Battery and Equipment Cabinet
Australian Registrar Of Designs Certification: No. 202014068
Equipment cabinets made specifically for the solar industry, to make installations easier, faster and safer.
Install your Choice of Batteries, Inverters and MPPT’s. Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation.
The cabinets are sized to enable mounting of all inverters and charge controllers in the same panel. This makes the installation much safer, whilst keeping all equipment out of sight and protected from the elements. The cabinets are made of aluminum, making them easy to position and providing a long service life.
A stand up mounting system allows for easy installation of 19” rackmount style battery modules along with rain protected vents on both sides and on top for mechanical ventilation.
Features
Specifications
| Model | AL2 |
|---|---|
| Battery modules | 2 |
| External height without cover | 1,350 mm (53.15 in) |
| External height with cover | 1,350 mm (53.15 in) |
| External cabinet width | 900 mm (35.43 in) |
| External width a base of flange | 900 mm (35.43 in) |
| External depth | 400 mm (15.75 in) |
| Internal usable depth | 330 mm (12.99 in) |
| Mounting Plate height | 640 mm (25.2 in) |
| Mounting Plate width | 450 mm (17.72 in) |
| Mounting Plinth width | 900 mm (35.43 in) |
| Mounting Plinth depth | 400 mm (15.75 in) |
| Weight | 55 kg (121.3 lb) |
| Material | Aluminum |
| Thickness | 3 mm (0.12 in) |
| Finish | Powder Coating |
