Slimline Low Voltage Cabinet

Name: Slimline Low Voltage Cabinet
SKU: SLIM-LV
Availability: BackOrder

Australian Registrar Of Designs Certification: No.202616060

Equipment cabinets made specifically for the solar industry, to make installations easier, faster and safer.

Install your Batteries, Inverters and MPPT’s. Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation.

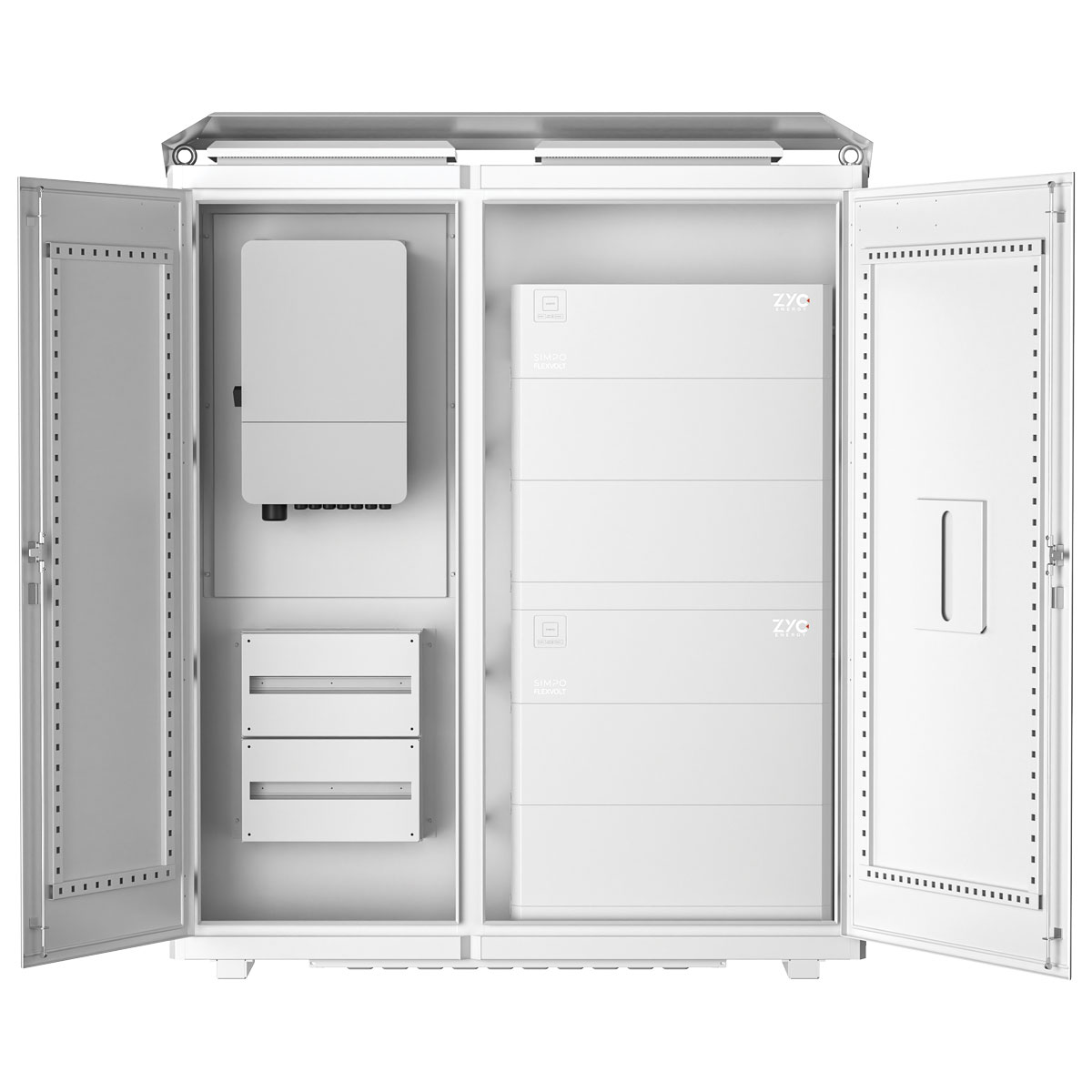

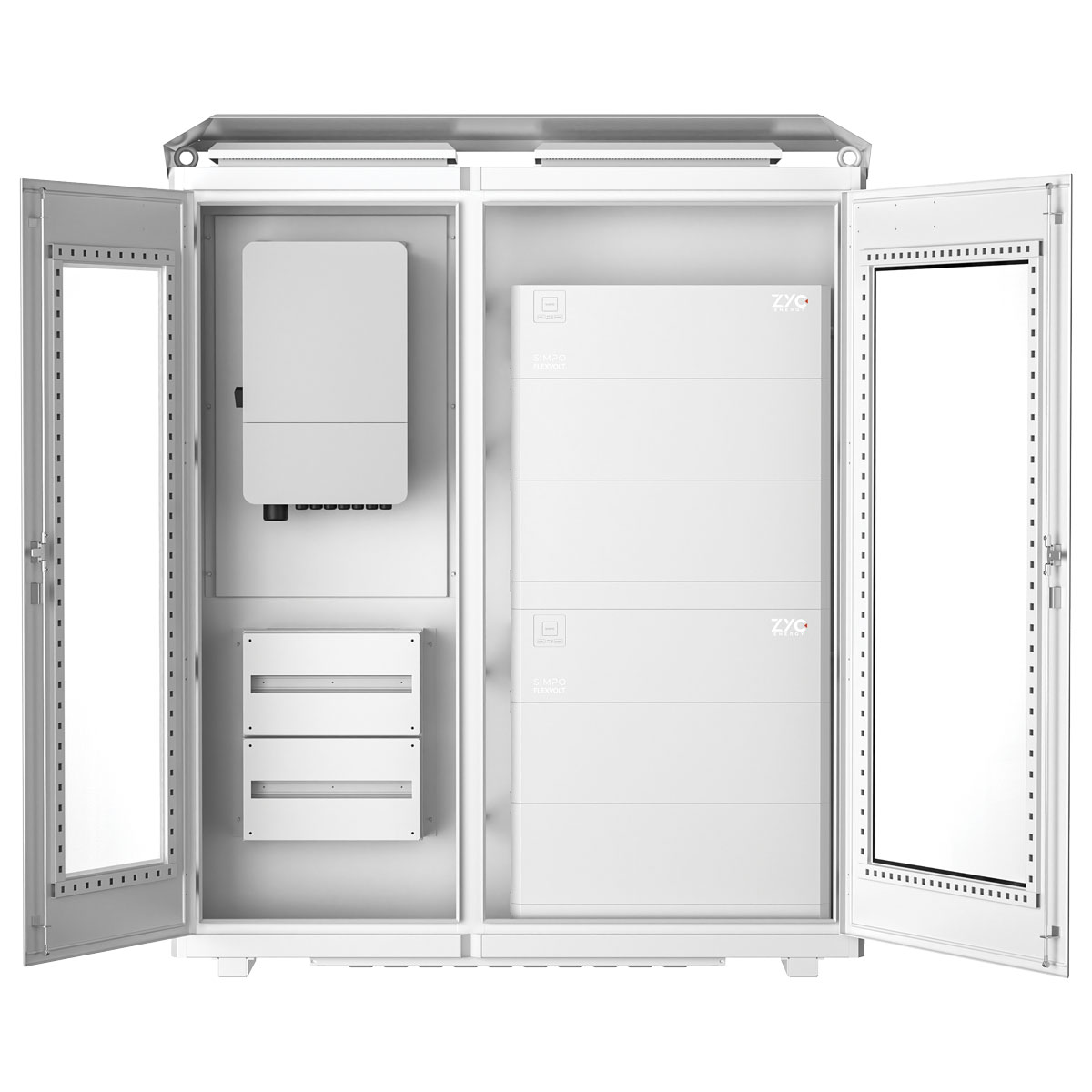

The cabinets are sized to enable mounting of all inverters and charge controllers in the same panel. This makes the installation much safer, whilst keeping all equipment out of sight and protected from the elements. The cabinets are made of aluminum, making them easy to position and providing a long service life.

A stand-up mounting system allows for easy installation of floor stackable style battery modules along with rain protected vents on both sides and on top for mechanical ventilation.

Door Type

Clear

SKU: SLIM-LV Category: Slimline Range Tag: Slimline Range

Enquire Now To Find Out More About This Product

Features

Height with rain hat – 2,185 mm (86.02 in)
Height without rain hat – 2,135 mm (84.06 in)
Width – 1,786 mm (70.31 in) • Depth main body – 300 mm (11.81 in)
Depth to door handle – 327 mm (12.87 in)
Depth of rain hat – 495 mm (19.49 in)
Gear plate width – 600 mm (23.62 in)
Gear plate height – 990 mm (38.98 in)
Gear plate depth – 20 mm (0.79 in)
Usable depth equipment side – 265 mm (10.43 in)
Usable depth battery side – 280 mm (11.02 in)
Usable internal height – 1,890 mm (74.41 in)
Usable internal width of battery section – 980 mm (38.58 in)

Cabinet features:

Document pocket on back of equipment side door

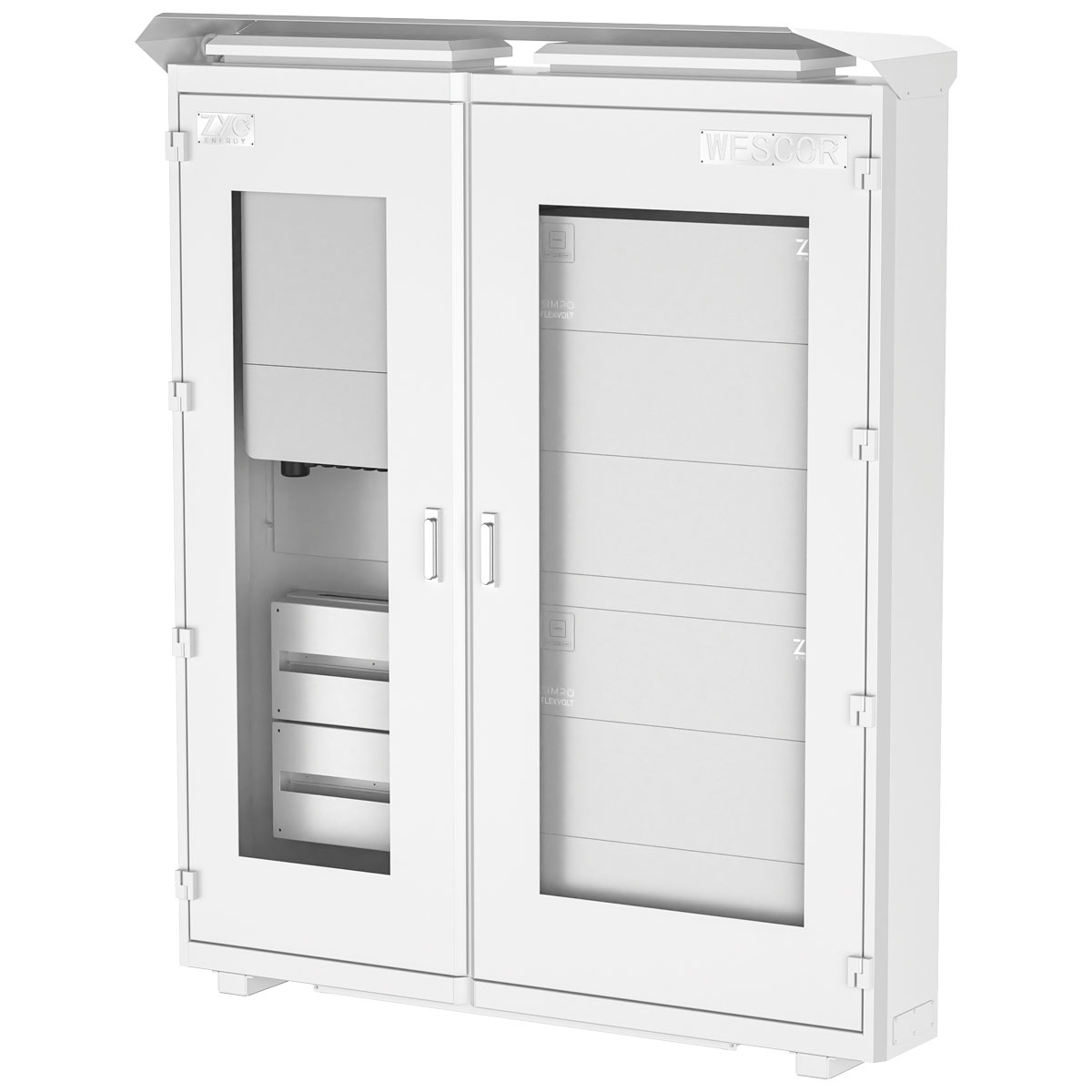

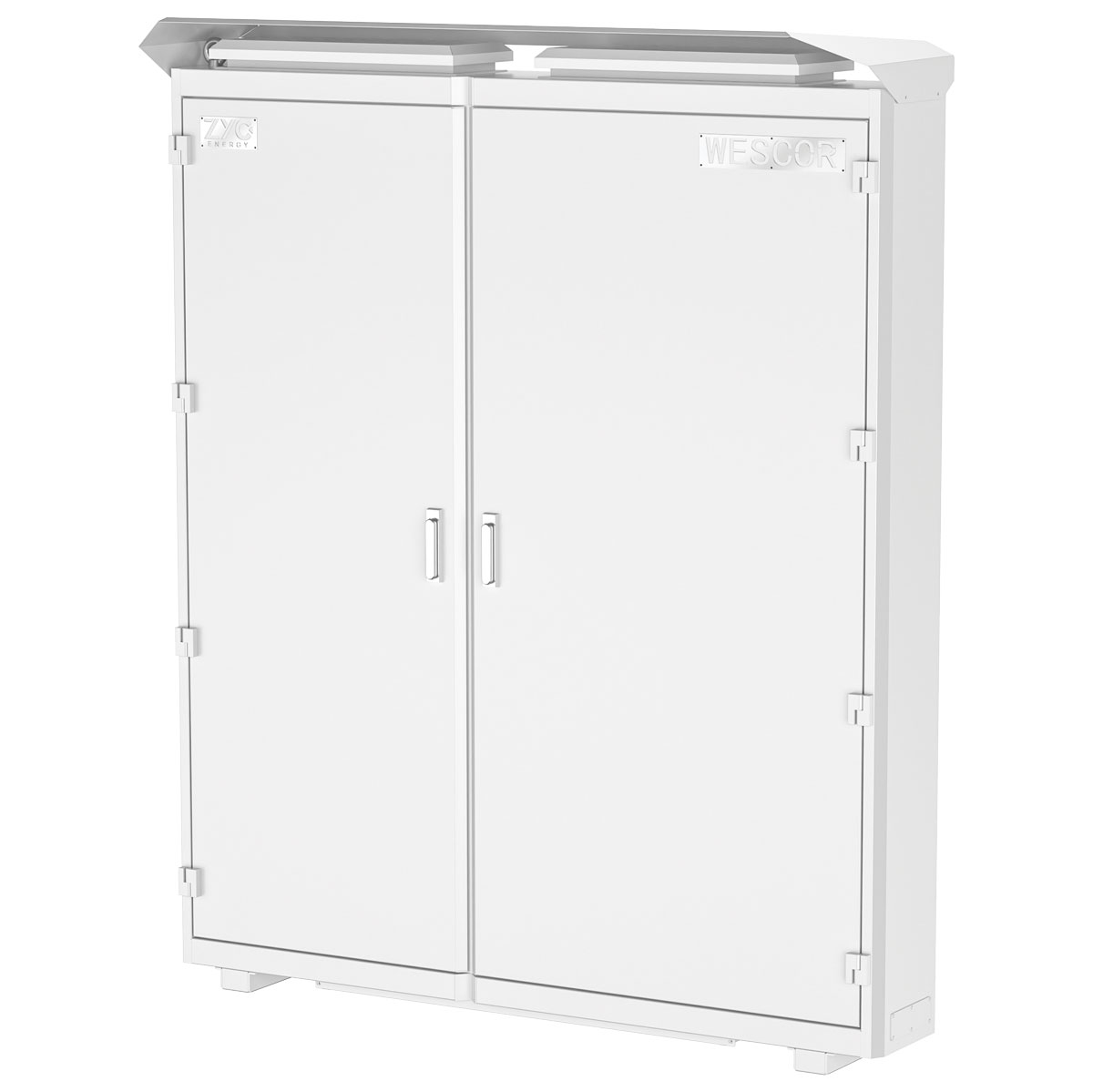

Available with solid or transparent doors
Electronic fan controller fitted that modulates fan speed according to temperature
Internal cable management ducts
6 × 150 mm (0.24 × 5.91 in) Fans- 230VAC, 1902m3/hr (total)
Serviceable filters- on fan inlet and outlets
Cabinets can be placed side by side with cable access provided between cabinets

Specifications

Model	LV Slimline
Battery modules	4
External height without cover	2,135 mm (84.06 in)
External height with cover	2,185 mm (86.02 in)
External cabinet width	1,786 mm (70.31 in)
External depth	300 mm (11.81 in)
Internal usable depth	280 mm (11.02 in)
Mounting Plate height	990 mm (38.98 in)
Mounting Plate width	600 mm (23.62 in)
Weight	90 kg (198.4 lb)
Material	Aluminum
Thickness	3 mm (0.12 in)
Finish	Powder Coating
Internal Usable Depth Equipment Side	265 mm (10.43 in)
Door Type	Solid Door, Transparent Door
