- 2 Equipment Mounting plates
- Indoor or outdoor installation thanks to IP 55 protection rating
- Fully welded construction, 3 mm (0.12 in) Aluminum
- Stainless steel bolts and fittings installed throughout
- Powder coated light grey finish (RAL7035)
- Mounting pan powder coated white

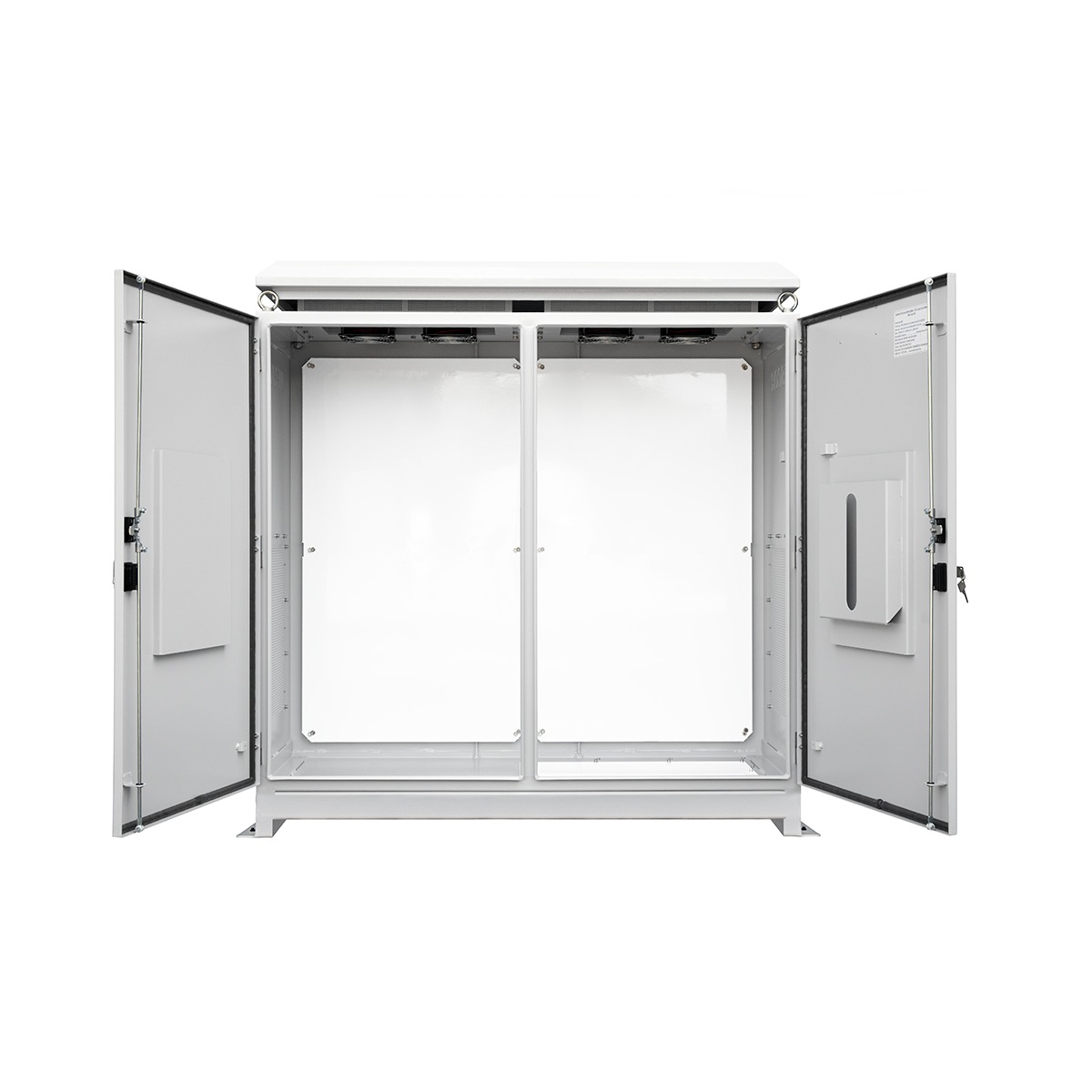

- Double front doors with batteries in the left and right compartments and the DC bus bars and battery isolators in the middle compartment
- Robust 3-point locking system • Gland plates fitted internally
- Gland plates fitted internally
- Rain protected vents on either side and on top to facilitate passive and forced ventilation. Covers are removable.
- Mounting plate can be used for mounting DC bus bars and battery isolators
- Stainless steel lifting eyes on all four corners on top
- Document pocket on inside of door
- Dust filters installed on inlet outlet vents
- Ventilation fans (48VDC) installed as standard
- Punched aluminum screens over all openings to prevent unwanted entry by insects
- DOWNLOAD DATASHEET
AL8EO

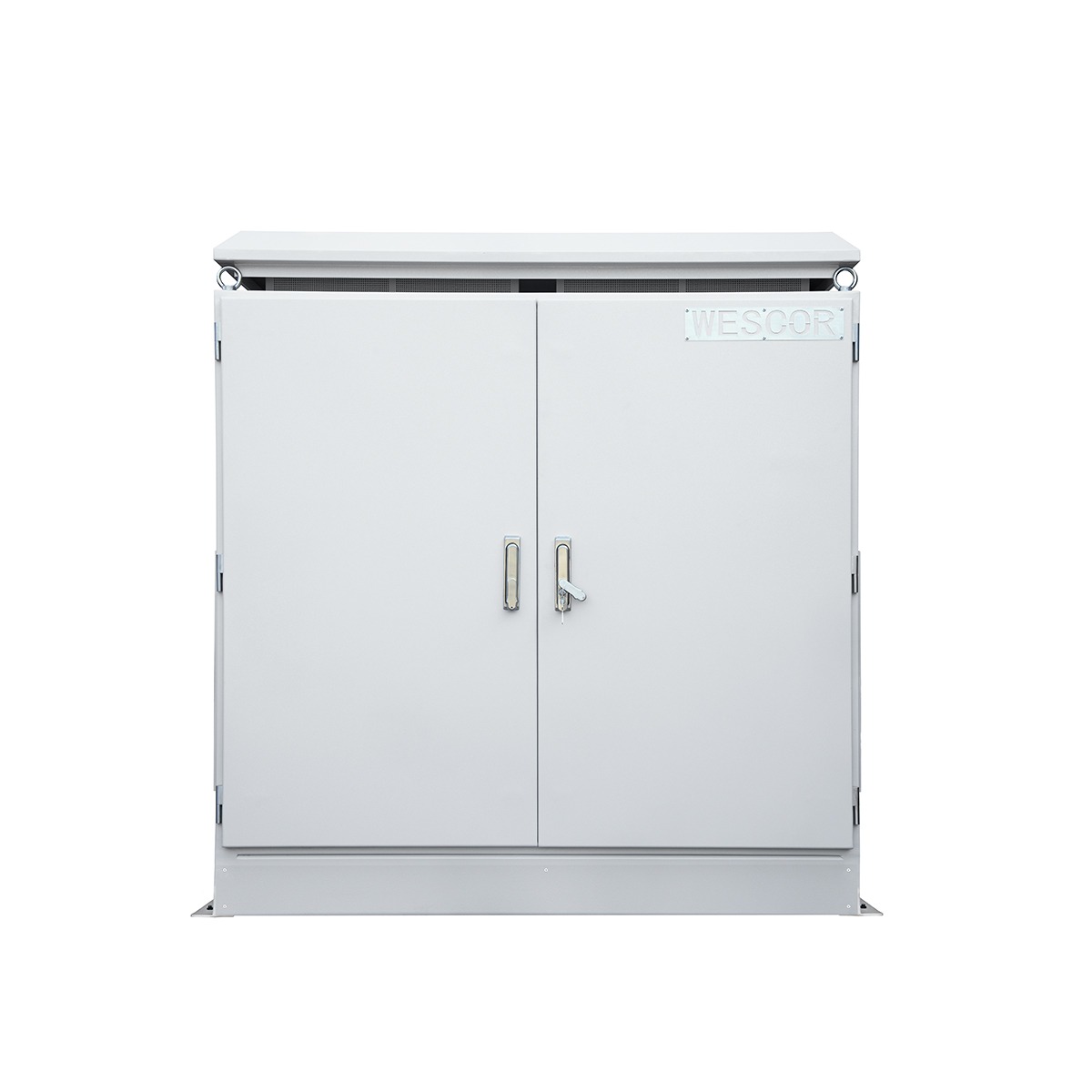

Equipment Only Cabinet
Australian Registrar Of Designs Certification: No. 202014068
Equipment cabinets made specifically for the solar industry, to make installations easier, faster and safer.
Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation.
The cabinets are sized to provide increased battery storage capacity in the same cabinet. This makes the installation much safer, whilst keeping all equipment out of sight and protected from the elements. The cabinets are made of aluminum, making them easy to position and providing a long service life.
Features
Optional Extras
- 50 mm (1.97 in) x 8 mm (0.31 in) x 600 mm (23.62 in) long tinned copper bus bar assembly complete with pre-drilled holes for battery cable connections
- Double Skinning with extra insulation between layers
- Air-conditioner fitted in a third compartment in the middle section of the cabinet
Specifications
| Model | AL8EO |
|---|---|
| External height without cover | 1,436 mm (56.54 in) |
| External height with cover | 1,438 mm (56.61 in) |
| External cabinet width | 1,400 mm (55.12 in) |
| External width a base of flange | 1,500 mm (59.06 in) |
| External depth | 585 mm (23.03 in) |
| Internal usable depth | 550 mm (21.65 in) |
| Mounting Plate height | 1,120 mm (44.09 in) |
| Mounting Plate width | 1,300 mm (51.18 in) |
| Mounting Plinth width | 1,500 mm (59.06 in) |
| Mounting Plinth depth | 585 mm (23.03 in) |
| Weight | 126 kg (277.8 lb) |
| Material | Aluminum |
| Thickness | 3 mm (0.12 in) |
| Finish | Powder Coating |
