- 19” Rack mounts with slide-in shelves for battery module mounting for 20 modules
- Universal racking system for multiple battery brands such as PowerPlus
- Indoor or outdoor installation thanks to IP55 protection rating and new additional rain hood
- Fully welded construction, 3 mm (0.12 in) Aluminum
- Stainless steel bolts and fittings installed throughout
- Powder coated light grey finish (RAL7035)
- Single front door with segregation between battery section and equipment section as per AS/NZS5139:2019
- Robust 3-point door locking system • Gland plates fitted internally
- Rain protected vents on either side and on top to facilitate passive and forced ventilation. Covers are removable.
- Stainless steel lifting eyes on all four corners on top
- Internal circuit breaker and bus bar section for combining all battery leads
- Document pocket on inside of door
- Dust filters installed on outlet vents
- 48VDC Ventilation fans installed as standard
- Punched aluminum screens over all openings to prevent unwanted entry by insects

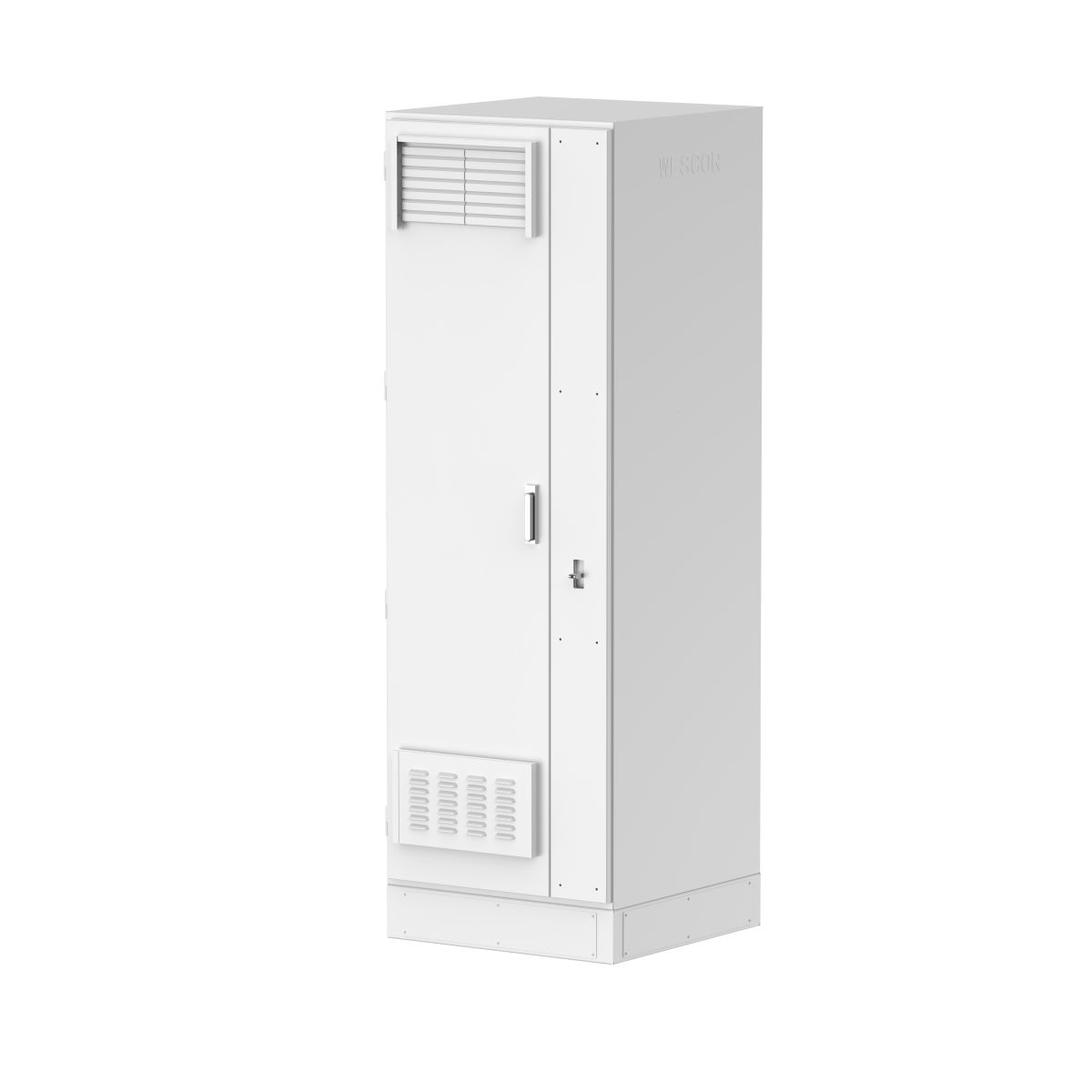

PowerPlus Cabinet
Solar Battery and Equipment Cabinet – Deeper Version
Australian Registrar Of Designs Certification: No. 202014068
Equipment cabinets made specifically for the solar industry, to make installations easier, faster and safer.
Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation.
The cabinets are made of aluminum, making them easy to position and providing a long service life.

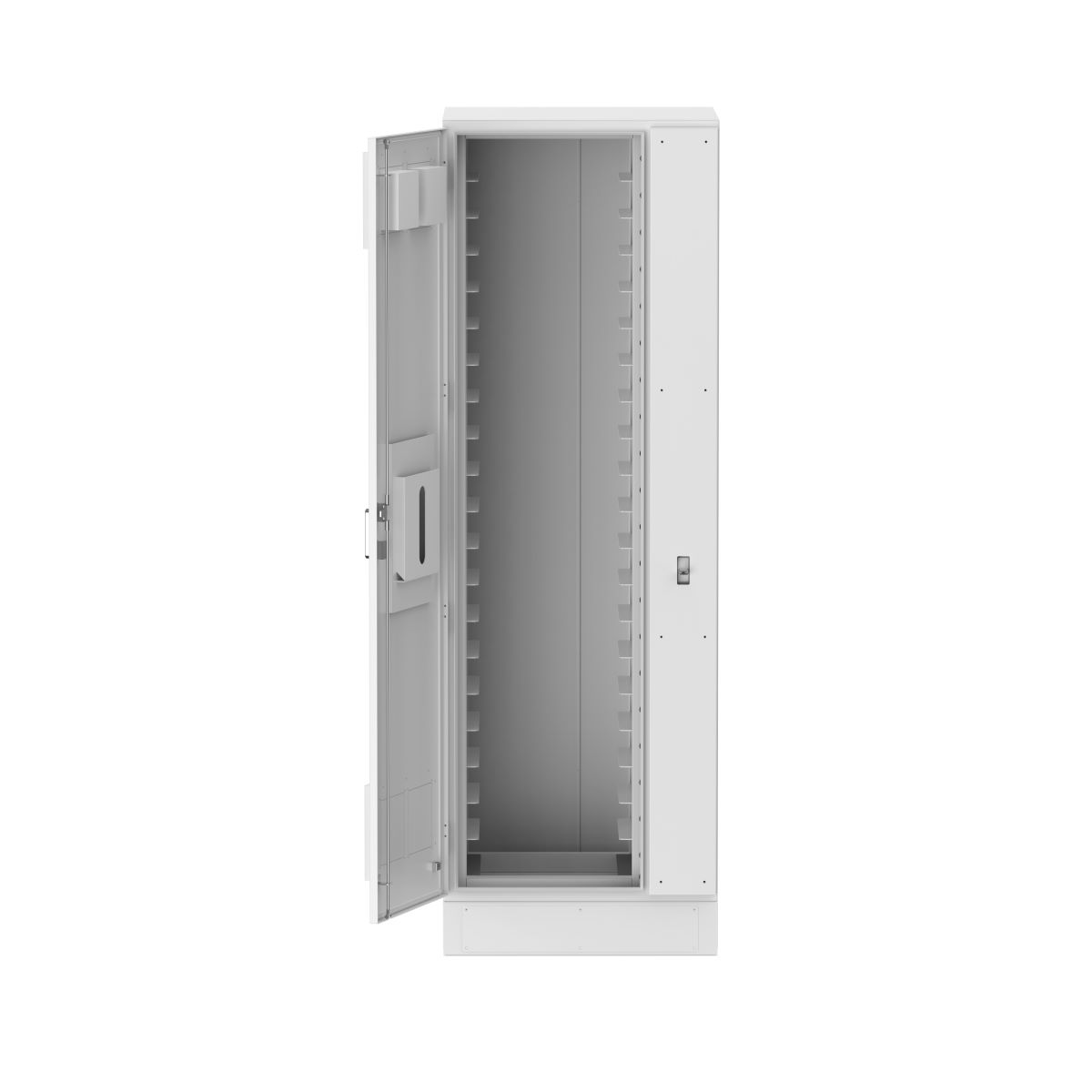

A slide-in racking system allows for easy installation of 19” rack-mount style battery modules along with rain protected vents on front door for passive ventilation.
Features
Specifications
| Model | PowerPlus Cabinet |
|---|---|
| Battery modules | 1-20 |
| External height without cover | 2,275 mm (89.57 in) |
| External height with cover | 2,275 mm (89.57 in) |
| External cabinet width | 746 mm (29.37 in) |
| External width a base of flange | 746 mm (29.37 in) |
| External depth | 740 mm (29.13 in) |
| Internal usable depth | 700 mm (27.56 in) |
| Mounting Plinth width | 660 mm (25.98 in) |
| Mounting Plinth depth | 750 mm (29.53 in) |
| Weight | 163 kg (359.4 lb) |
| Material | Aluminum |
| Thickness | 3 mm (0.12 in) |
| Finish | Powder Coating |
