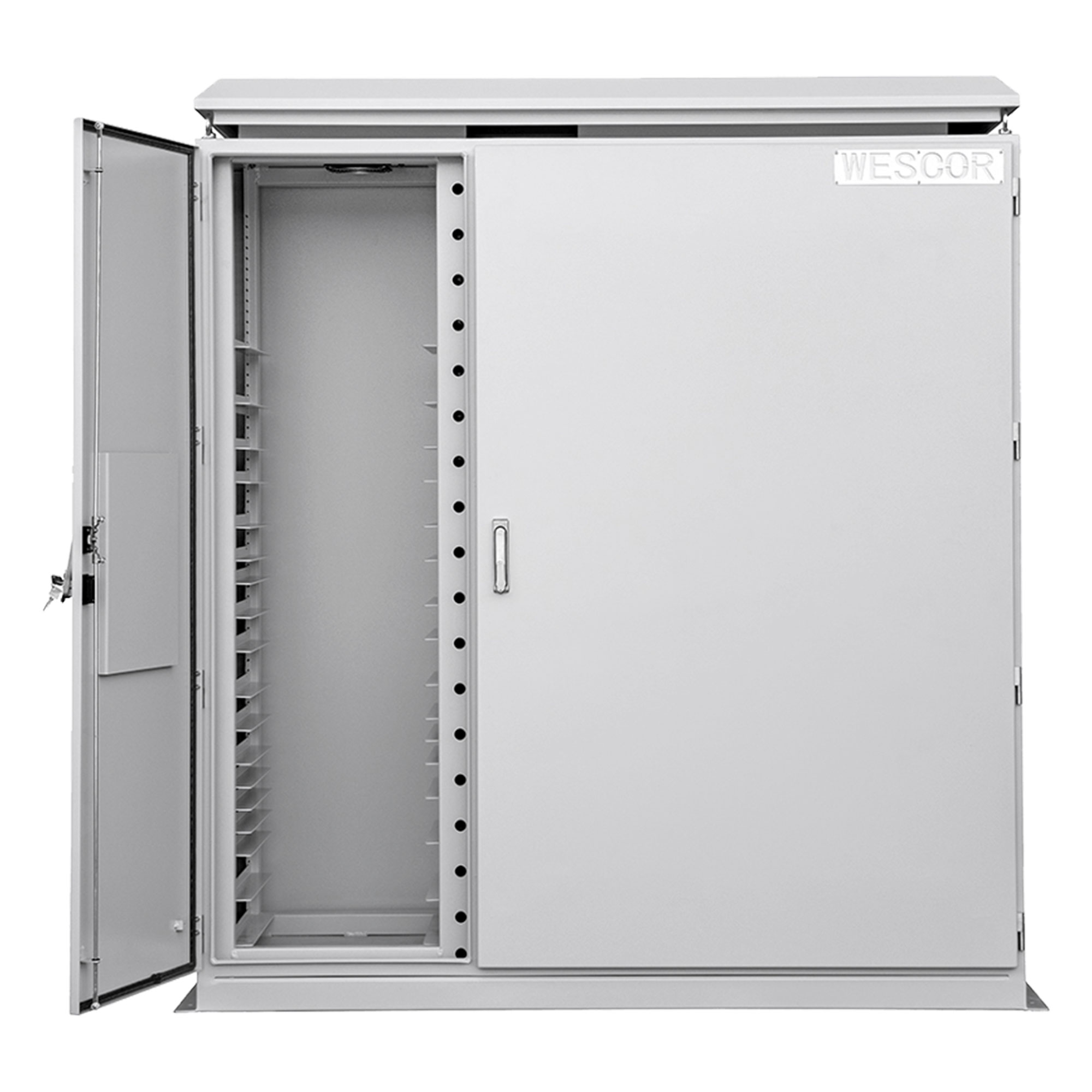

- 19” Rack mounts with slide-in shelves for battery module mounting, ranging from 5-17 modules
- Universal racking system for multiple battery brands such as BYD Flex 5.0, ZYC Simpo 5000, Gen Z, Dyness and Powerplus to name a few.
- Indoor or outdoor installation thanks to IP 55 protection rating
- Fully welded construction, 3 mm (0.12 in) Aluminum
- Stainless steel bolts and fittings installed throughout
- Powder coated light grey finish (RAL7035)
- Mounting pan powder coated white

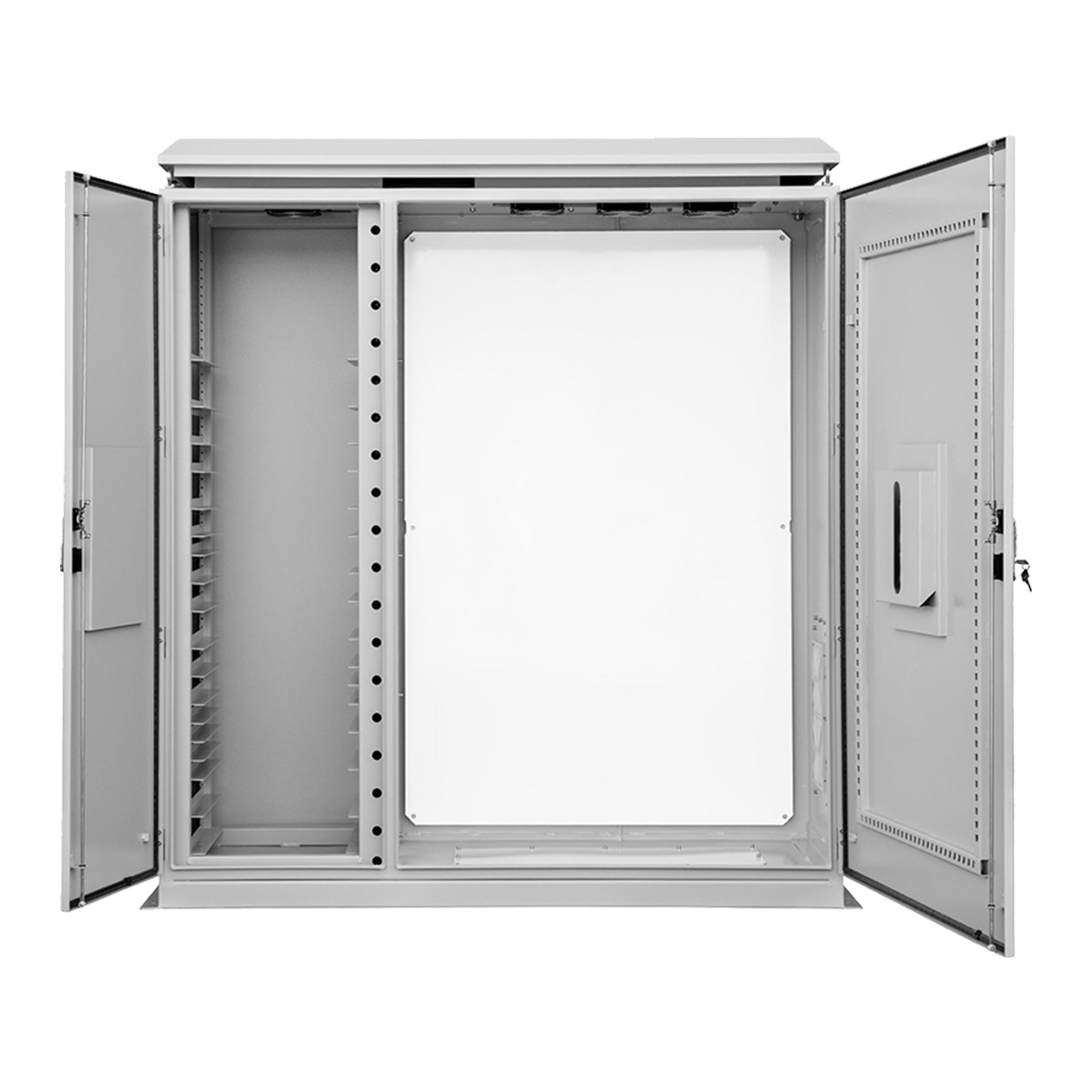

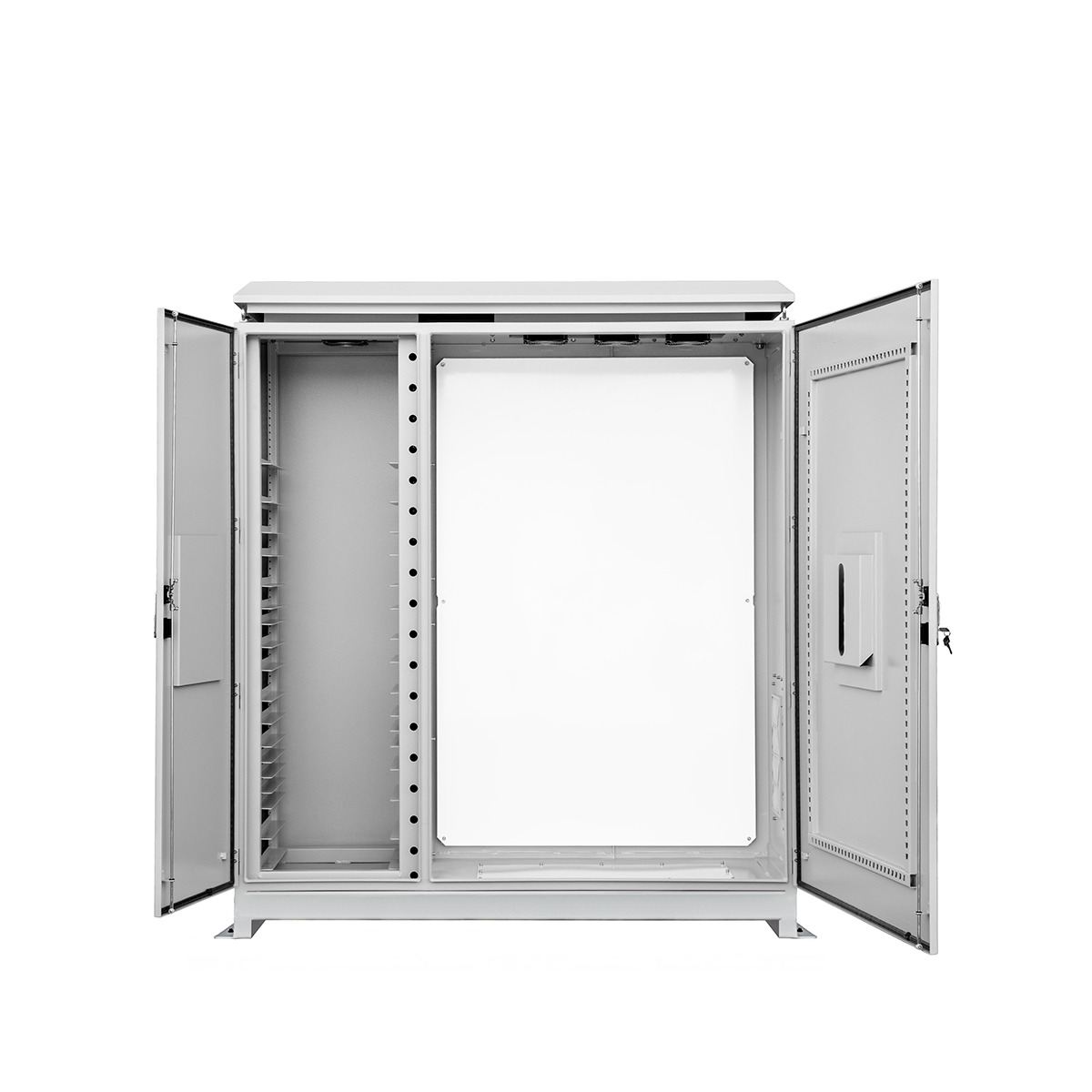

- Double front doors with segregation between battery section and equipment section as per AS/NZS 5139:2019
- Robust 3-point locking system • Gland plates fitted internally

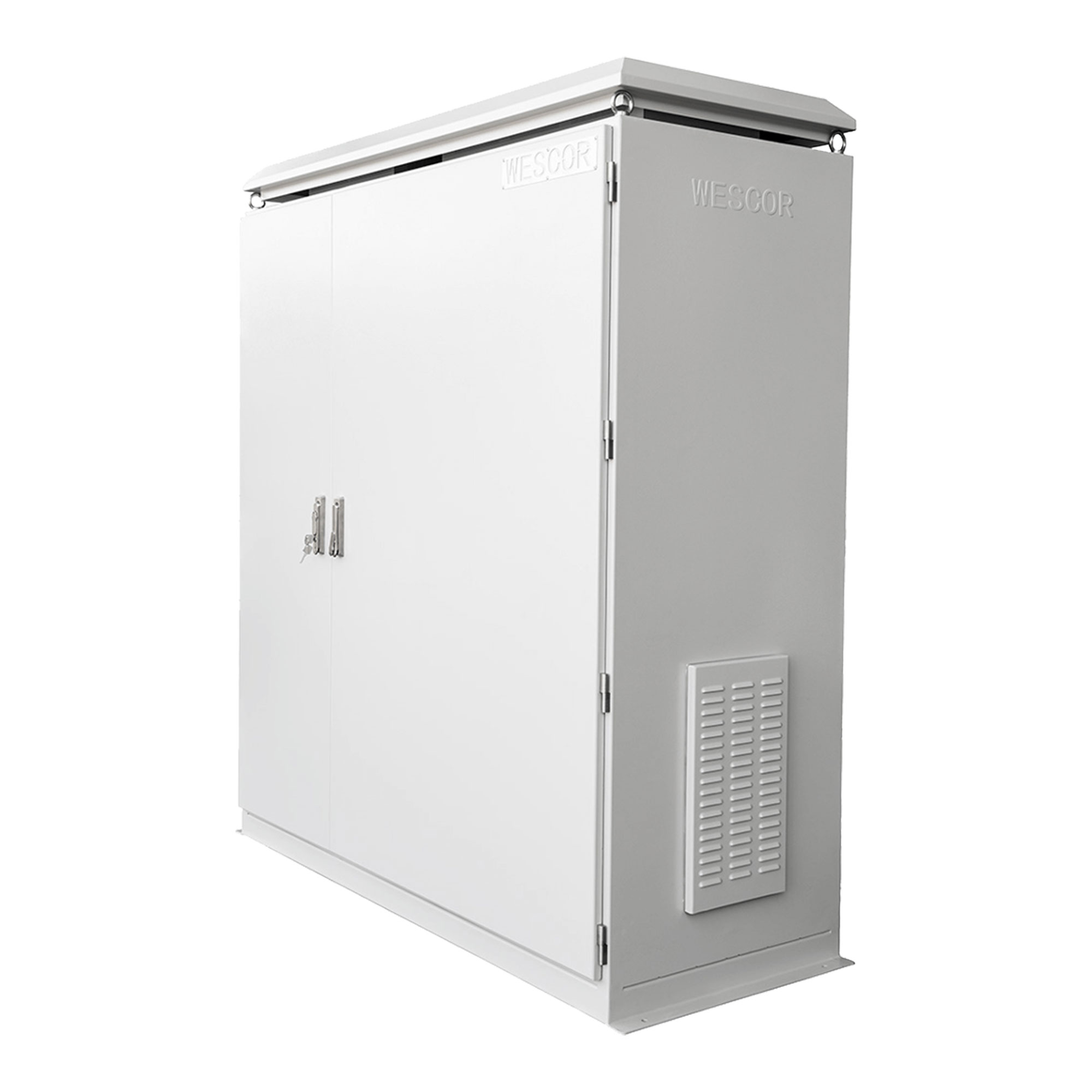

- Rain protected vents on either side and on top to facilitate passive and forced ventilation. Covers are removable.
- Mounting plate can be used for inverters, chargers and all other equipment
- Stainless steel lifting eyes on all four corners on top
- Internal circuit breaker section for individual battery module isolation, with circuit breaker cut-outs in the escutcheon
- Document pocket on inside of door
- Dust filters installed on inlet outlet vents
- Ventilation fans (48VDC) installed as standard
- Punched aluminum screens over all openings to prevent unwanted entry by insects
- DOWNLOAD DATASHEET

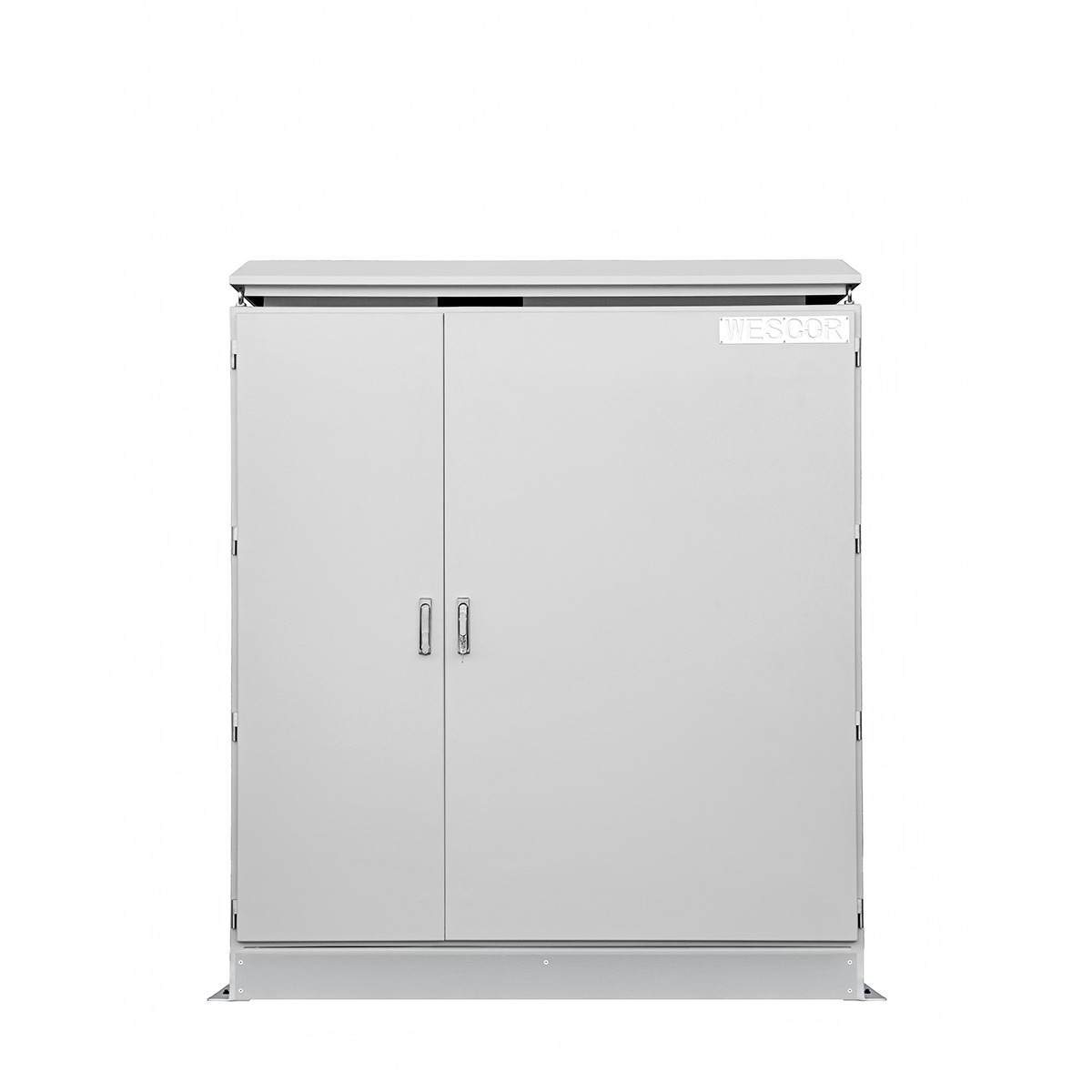

AL12+D
Solar Battery and Equipment Cabinet – Deeper Version
Australian Registrar Of Designs Certification: No. 202014068
Equipment cabinets made specifically for the solar industry, to make installations easier, faster and safer.
Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation.
The cabinets are sized to enable mounting of all inverters and charge controllers in the same panel. This makes the installation much safer, whilst keeping all equipment out of sight and protected from the elements. The cabinets are made of aluminum, making them easy to position and providing a long service life.
A slide-in racking system allows for easy installation of many different types of 19” rack-mount style battery modules along with rain protected vents on both sides and on top for mechanical air ventilation. Double skinned and airconditioned versions also available on request.
Features
Optional Extras
- 50 mm (1.97 in) x 8 mm (0.31 in) x 600 mm (23.62 in) long tinned copper bus bar assembly complete with pre-drilled holes for battery cable connections
- Double Skinning with extra insulation between layers
- Air-conditioner fitted in a third compartment in the middle section of the cabinet
Specifications
| Model | AL12+D |
|---|---|
| Battery modules | 1-17 (Number of batteries depends on type of battery chosen) |
| External height without cover | 2,036 mm (80.16 in) |
| External height with cover | 2,038 mm (80.24 in) |
| External cabinet width | 1,800 mm (70.87 in) |
| External width a base of flange | 1,900 mm (74.8 in) |
| External depth | 735 mm (28.94 in) |
| Internal usable depth | 700 mm (27.56 in) |
| Mounting Plate height | 1,720 mm (67.72 in) |
| Mounting Plate width | 1,120 mm (44.09 in) |
| Mounting Plinth width | 1,900 mm (74.8 in) |
| Mounting Plinth depth | 710 mm (27.95 in) |
| Weight | 205 kg (451.9 lb) |
| Material | Aluminum |
| Thickness | 3 mm (0.12 in) |
| Finish | Powder Coating |
