BENY New Energy BYT.2-32 DC Isolator 1200V DC 32A 2 Pole 4 Pole Solar Isolator Switch Din Rail Mounting TUV/ CB/ CE Certified
Highlights :
- 1200Vdc 32A
- 3ms arc suppression
- AS 60947.3:2018, IEC 60947.3
- Lockable at off position

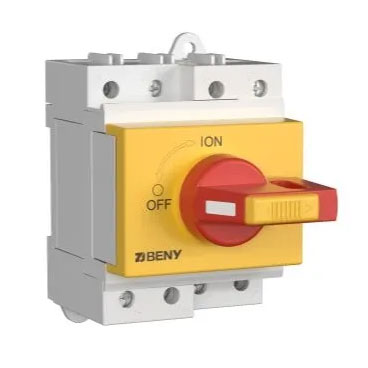

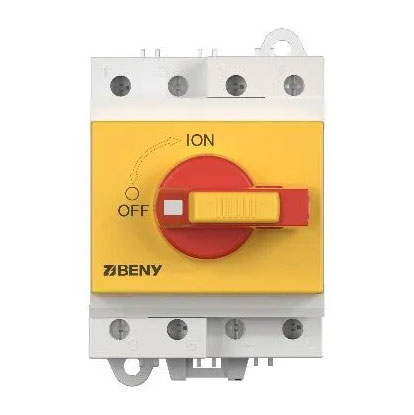

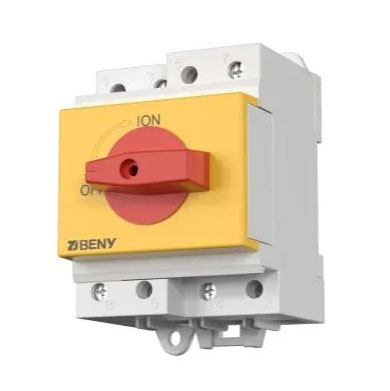

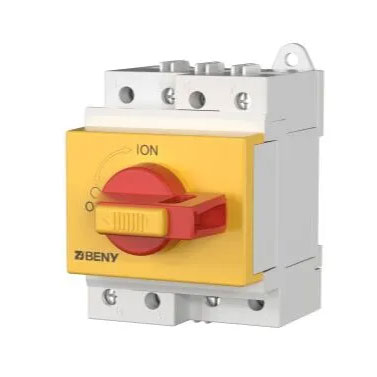

DC Isolator 1200V 32A Open Type BYT.2-32 IEC&AS
Open type DC isolator switch. A din rail mounting DC switch up to 1200V 32A, lockable handle for safe using and maintaining.
A reliable DC switch according to IEC60947.3 and AS60947.3 DC-PV2 standard, zero failure in millions of solar installation and DC circuit.
Features
Specifications
| Poles | 2P 4P |
|---|---|
| Standard | IEC60947.3, AS60947.3:2018 |
| Utilization Category | DC-PV2 |
| Rated Operational Voltage (Ue) | 600V, 800V, 1000V, 1200V |
| Rated Current | 9A-40A |
| Mechanical Cycle | 15000 |
| Electrical Cycle | 1000 |
| Protection Degree | IP20 switch body |
| Polarity | No Polarity |
| Certificate | TUV / CE/ CB |
