- 50 mm (1.97 in) x 8 mm (0.31 in) per bar (400 mm² (0.62 in²)) tinned copper with pre-threaded 8 mm (0.31 in) and 10 mm (0.39 in) holes.
- 1,050 mm (41.34 in) long extended Aluminum mounting plate to allow for circuit breakers (circuit Breakers not included with kit)
- DC rating 1070amps
- Purspex cover full length
Bus Bar Kit

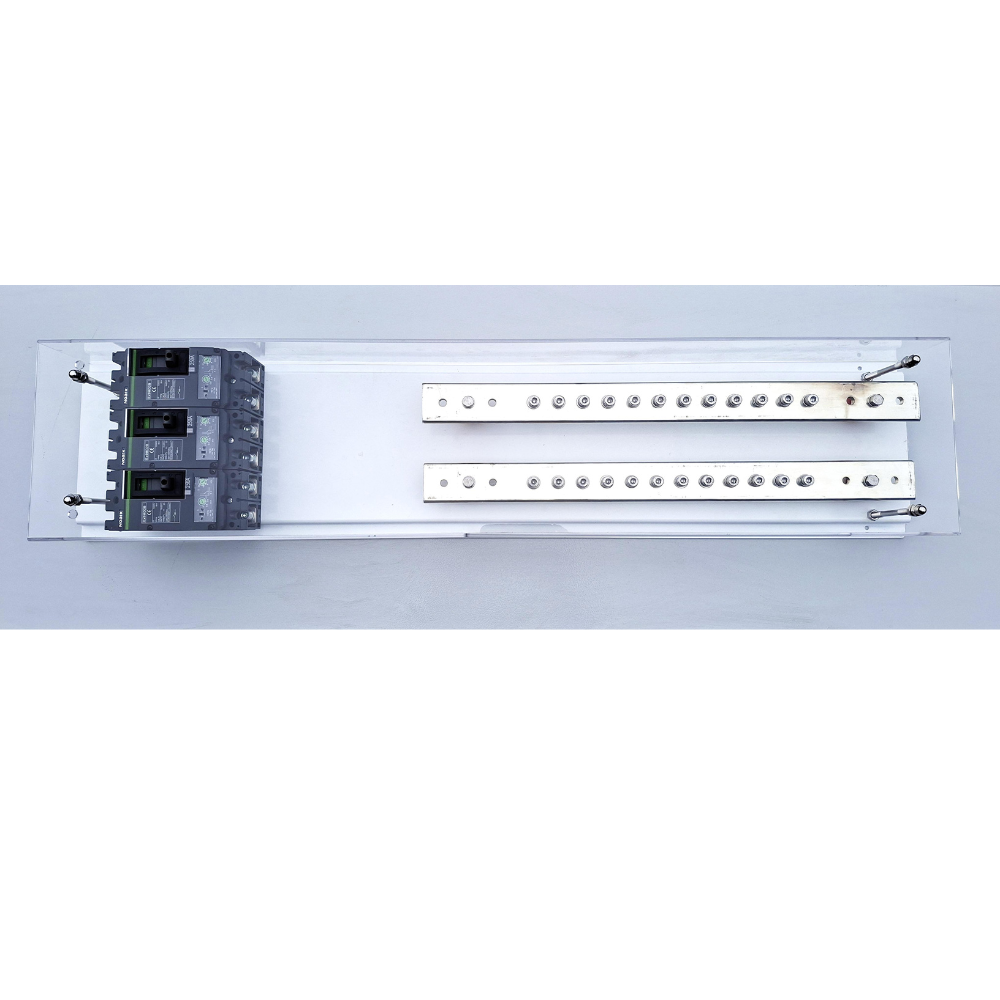

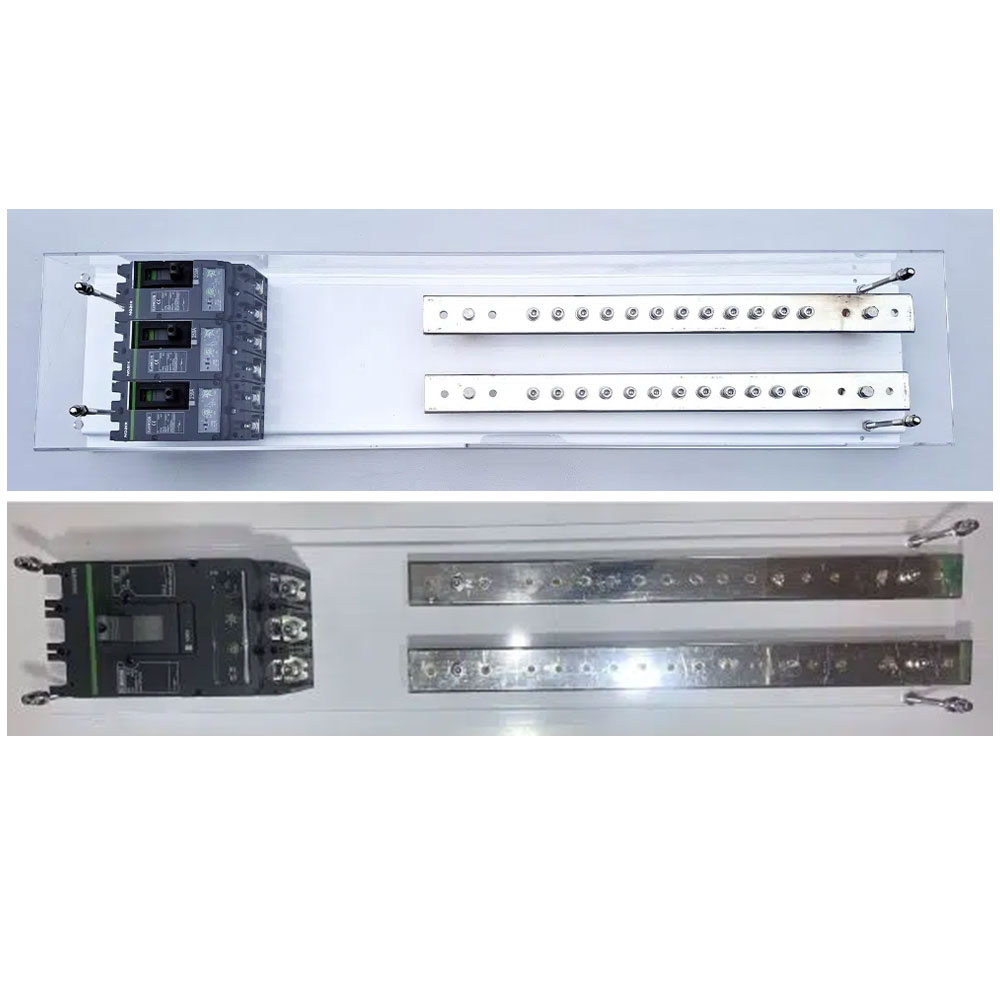

Including 50 mm (1.97 in) x 8 mm (0.31 in) x 600 mm (23.62 in) long tinned copper bus bar complete with pre-drilled holes for battery cable connections, Bus bar insulators and stainless-steel bolts, 1,050 mm (41.34 in) L x 234 mm (9.21 in) W Aluminum mounting plate extended length to allow for circuit breakers, Full length purspex cover. Circuit breakers are not included in price.
Features
Specifications
| Thickness | 3 mm (0.12 in) |
|---|---|
| Finish | Powder Coating |
| Mounting Pan Material | Aluminum |

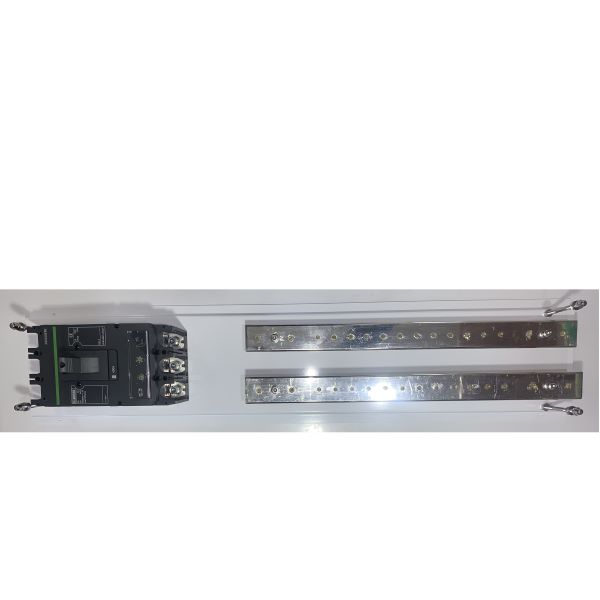

| Purspex to suit | 3 x 250amp breakers, 1 x 400amp breaker |
